Product Overview
The 880×880 square SMC manhole cover is designed for use in electrical and telecommunications access chambers. Made from fiberglass reinforced SMC composite, it provides excellent corrosion resistance, long-term durability, and no recycling value.

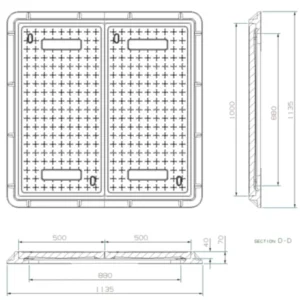

Product Drawing
Key Features
- Two screw locking points – securely fastens the cover to the frame for stable installation
- Corrosion-resistant SMC material – will not rust and has no recycling value
- Lightweight construction – reduces handling effort compared with traditional cast iron covers
- Slip-resistant surface – textured cover surface provides improved grip under wet conditions
Specifications & Dimensions
| Load Class | Clear Opening | Cover Size | Frame Size | Overall Height | Cover Thickness | Weight |
|---|---|---|---|---|---|---|
| B125 | 880x880mm | 1000x1000mm | 1135x1135mm | 70mm | 40mm | 83kg |
| C250 | 880x880mm | 1000x1000mm | 1135x1135mm | 70mm | 40mm | 106kg |
Technical Specifications:
- Material: SMC Composite
- Clear Opening: 880 × 880 mm
- Load Class: B125 / C250
- Standard: EN124
- Shape: Square
- Locking System: Two Screw Locks
Applications
- Telecommunications chambers
- Electrical utility chambers
- Cable access chambers
- Fiber optic networks
- Underground service access points
- Pedestrian areas
FAQ
What is the difference between double leaf and single leaf?
Single leaf covers are one solid panel, while double leaf covers have two independent panels. Double leaf designs reduce individual panel weight for easier handling.
Can you provide OEM / ODM service?
Yes. OEM and ODM services are available. Custom logo, color, surface pattern, and dimensions can be produced according to project requirements.
What is your delivery time?
Normally, the production lead time is about 15–25 days depending on order quantity and product specifications.
What is the MOQ?
MOQ depends on the product size and specifications. Please contact us for detailed information.
What packaging method do you use?
The products are normally packed on export pallets for safer transportation and easier loading and unloading.
Do you provide warranty and after-sales service?
Yes. We provide one-year warranty service and technical support for our products. Please contact us for detailed after-sales information and project assistance.
