Product Overview

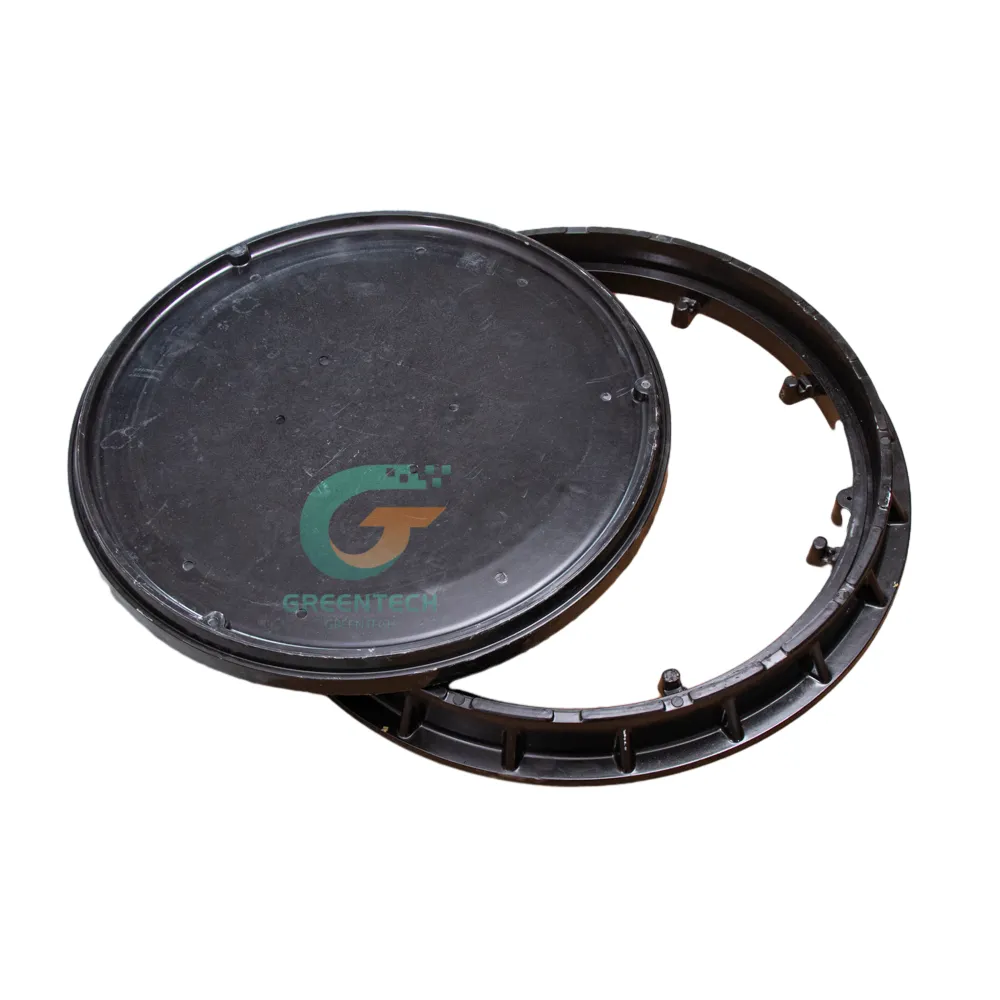

The 630mm clear opening round manhole cover is manufactured from high-strength SMC composite material for underground utility systems and heavy-duty access applications. The SMC composite structure offers excellent corrosion resistance, anti-static performance, and long-term durability in demanding outdoor environments. Available in EN124 B125, C250, and D400 load classes for different traffic conditions.
Key Benefits
Multiple Load Classes
- EN124 B125, C250, and D400 load ratings for versatile applications
- D400 version suitable for heavy traffic roads and vehicle loading areas
- B125 and C250 options for pedestrian zones and light traffic
Superior Durability
- High-strength SMC composite provides excellent corrosion and chemical resistance
- Anti-static and flame-retardant properties for safety in sensitive installations
- Non-metal anti-theft design eliminates scrap value theft risk
Reliable Sealing

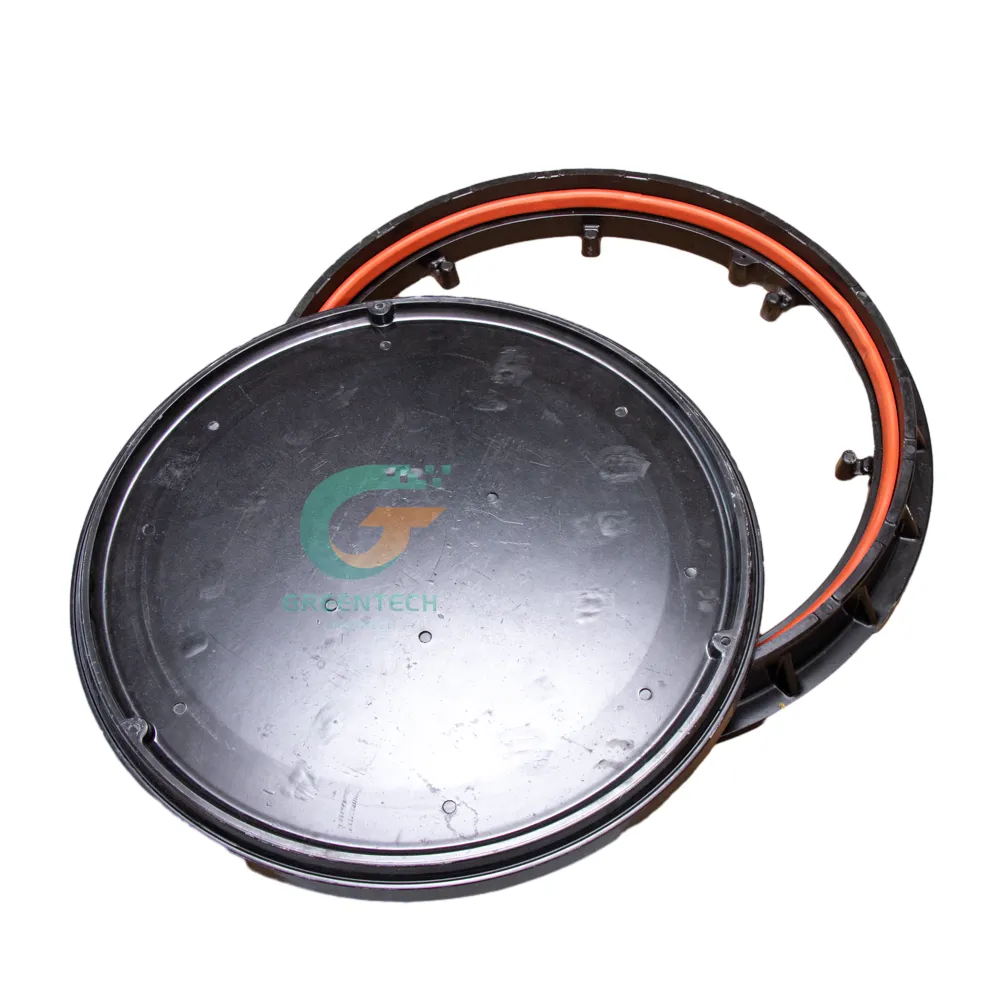

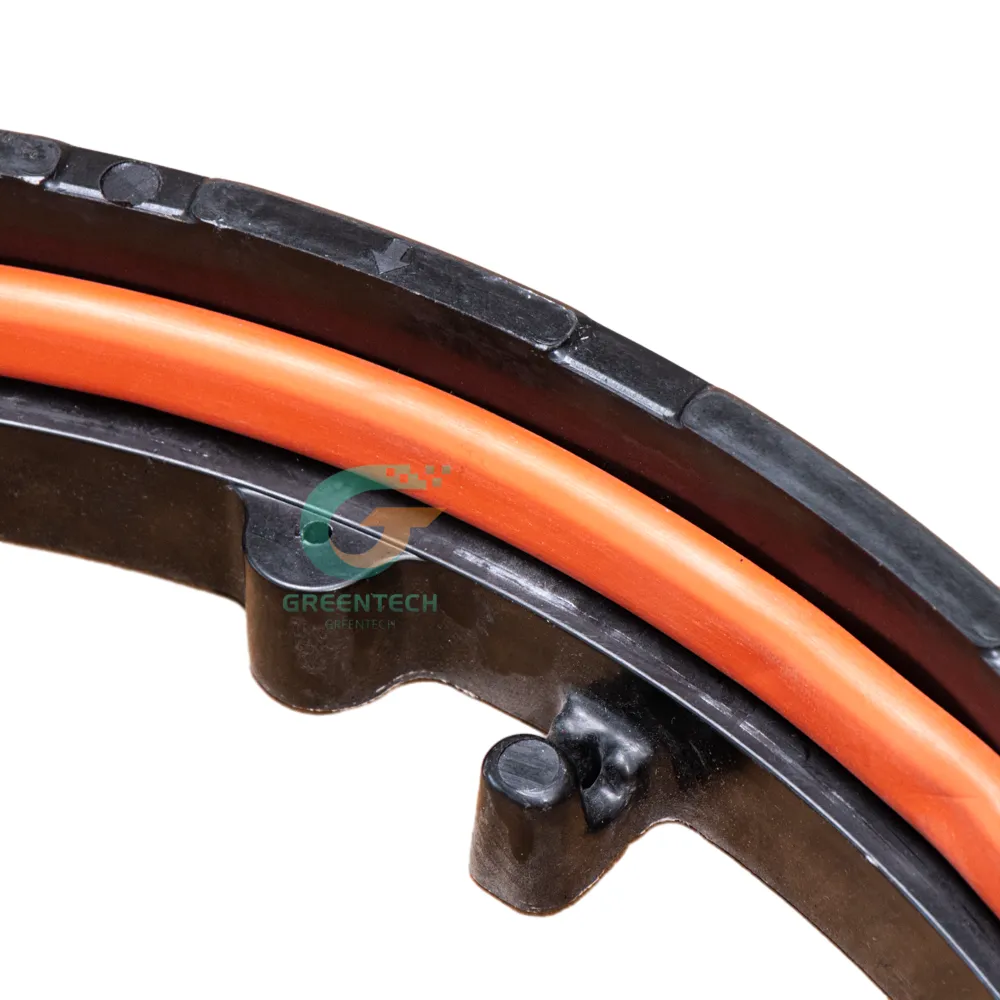

- Waterproof sealing structure prevents leakage and water ingress
- Long service life with minimal maintenance requirements
- Stable performance in demanding outdoor environments
Real Customer Feedback
We installed these 630mm SMC covers at a municipal infrastructure project. The range of load classes allowed us to use the same product family across different traffic zones. The D400 units handle heavy truck traffic without any deformation. The sealing performance has been excellent through two rainy seasons. Much better than our previous concrete and cast iron solutions. – Tom W., Infrastructure Procurement Manager
Technical Specifications
- Clear Opening: 630mm
- Cover Size: 700mm
- Frame Size: 790mm
- Height: 80mm
- Weight: 25kg (B125), 32kg (C250), 35kg (D400)
- Material: SMC (Sheet Molding Compound) composite
- Load Classes: EN124 B125, C250, and D400
- Included Components: Cover and frame
Comparison Table
| Feature | 630mm SMC Cover | Traditional Cast Iron | Concrete Cover |
|---|---|---|---|
| Weight Range | 25-35 kg | 60-80 kg | 70-100 kg |
| Corrosion Resistance | Excellent | Poor | Moderate |
| Load Class Options | B125 / C250 / D400 | C250 / D400 | D400 |
| Installation Ease | Easy | Difficult | Very difficult |
FAQ
Can you provide OEM / ODM service?
Yes. OEM and ODM service are available. Custom logo, color, surface pattern, and dimensions can be produced according to project requirements.
What is your delivery time?
Normally, the production lead time is about 15–25 days depending on order quantity and product specifications.
What is the MOQ?
MOQ depends on the product size and specifications. Please contact us for detailed information.
What packaging method do you use?
The products are normally packed on export pallets for safer transportation and easier loading and unloading.
Do you provide warranty and after-sales service?
Yes. We provide one-year warranty service and technical support for our products. Please contact us for detailed after-sales information and project assistance.
Does the cover have waterproof sealing structure?
Yes. The cover is equipped with a sealing structure designed to help prevent leakage and water ingress.
Is this product suitable for heavy traffic areas?
Yes. The D400 version is suitable for heavy-duty traffic environments according to EN124 standards.
Is the material resistant to fuel and chemicals?
Yes. SMC composite material provides excellent corrosion and chemical resistance for underground fuel system applications.
Does the product include the frame?
Yes. The product includes both the manhole cover and frame.
