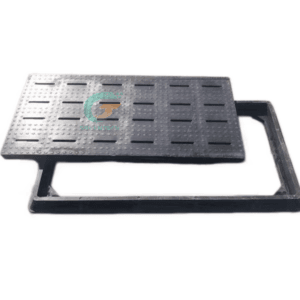

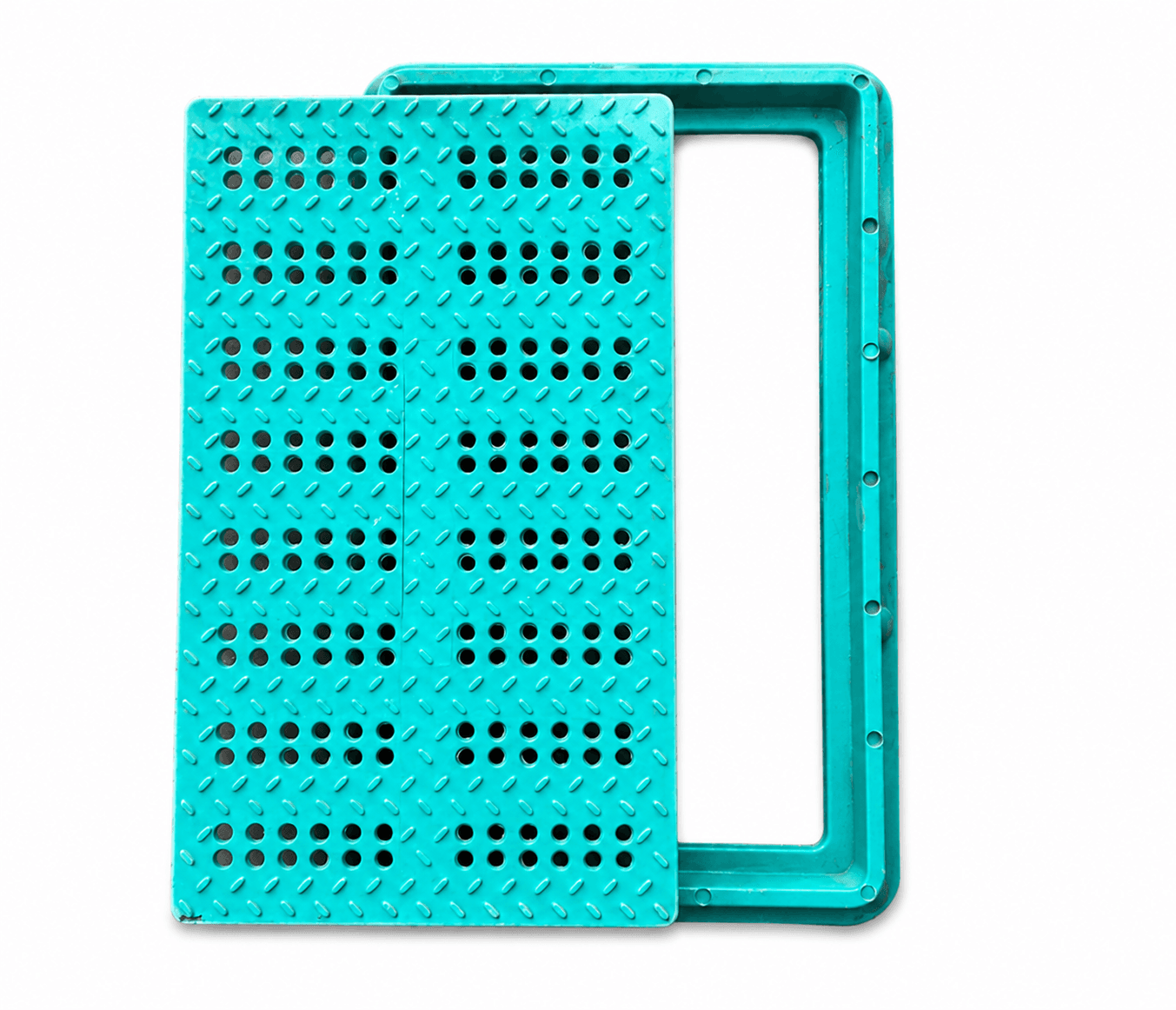

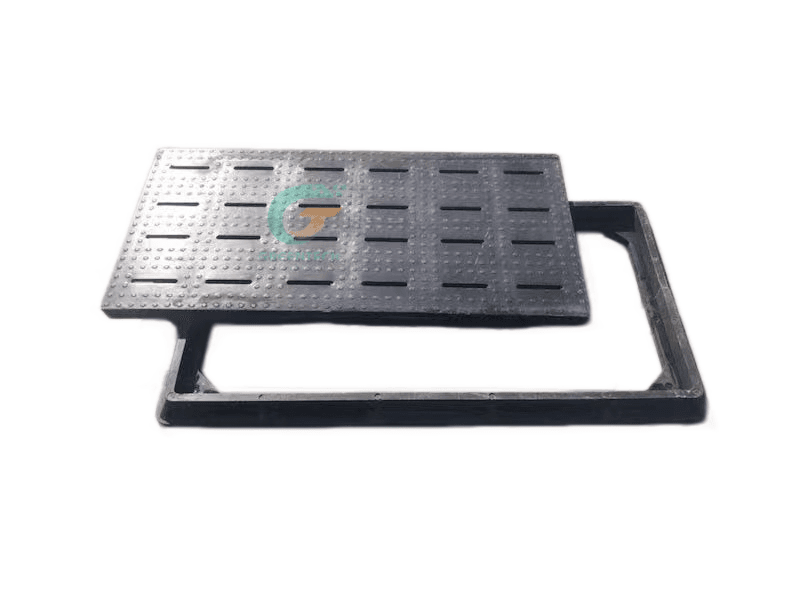

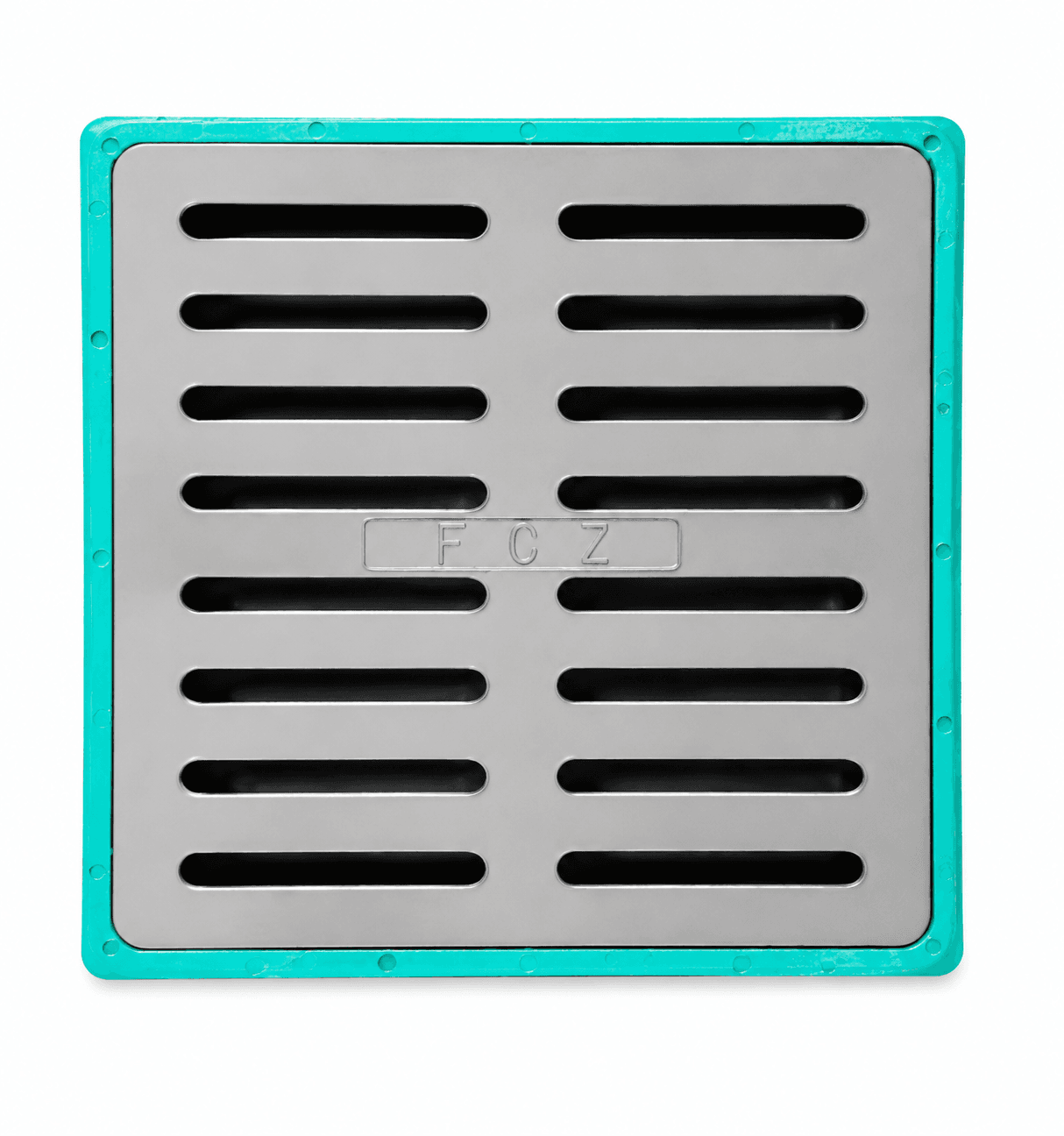

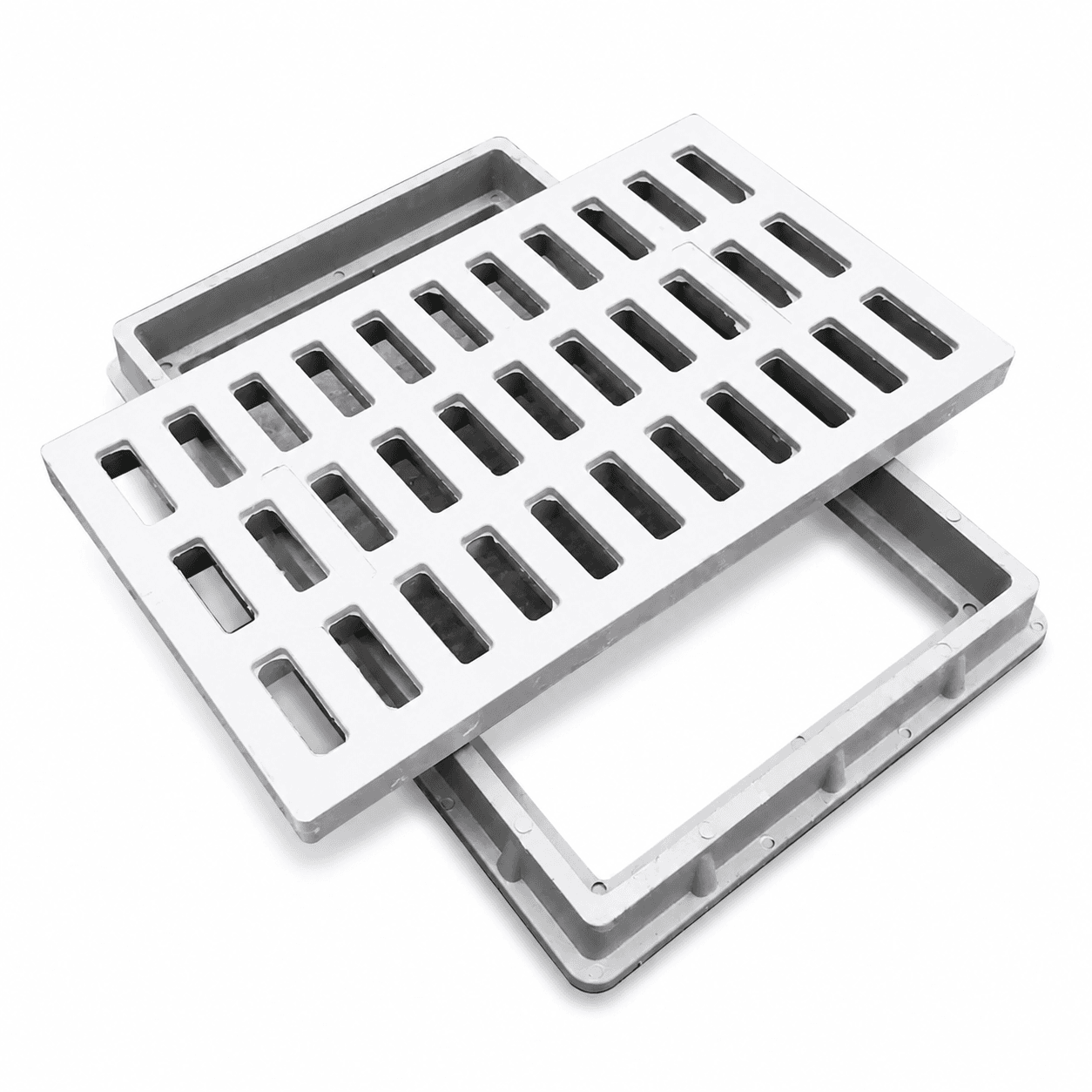

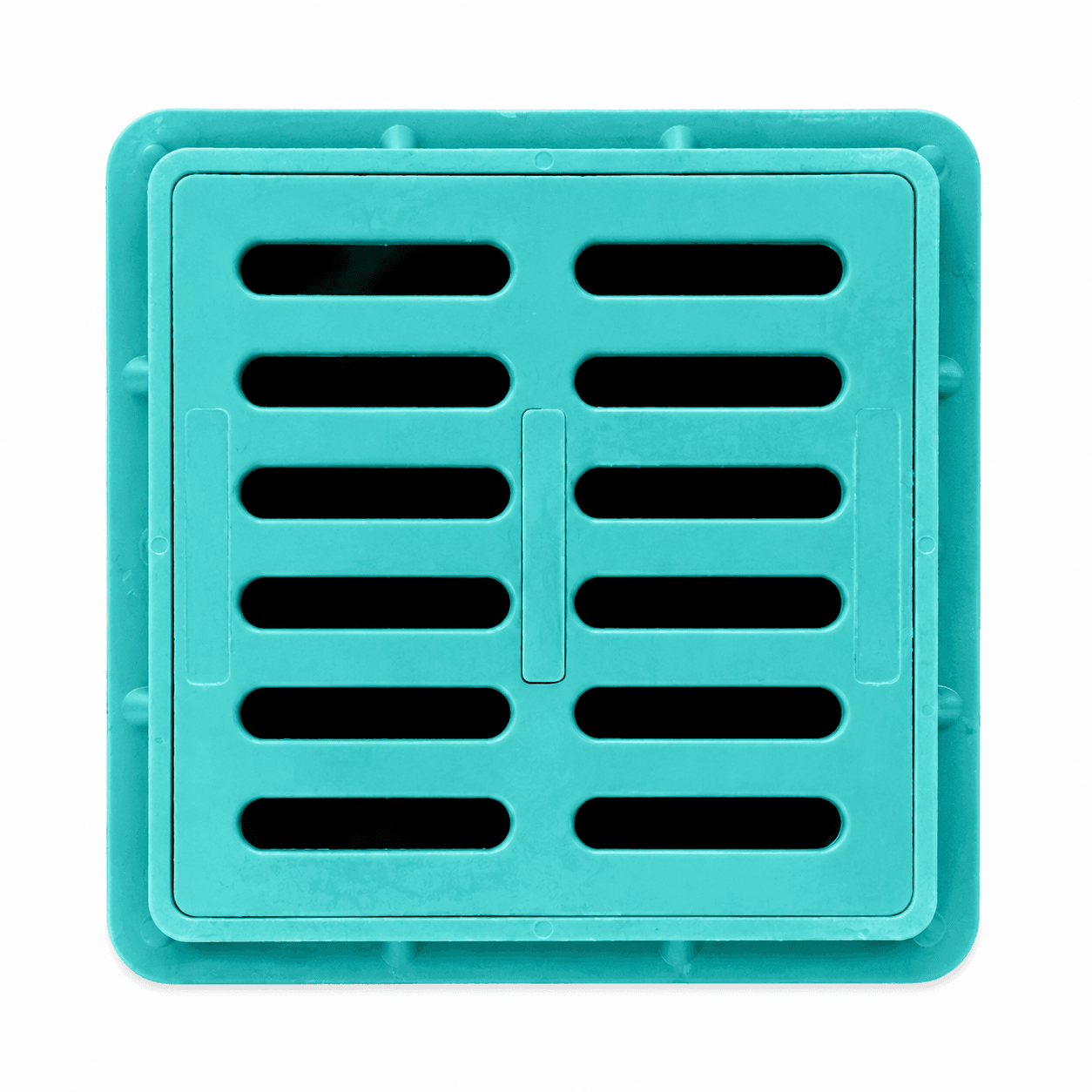

Product Overview
The FRP drain grating with frame is designed for drainage systems, collecting wells and surface water collection applications. The integrated design provides a complete drainage solution for channels, drainage ditches and outdoor areas where efficient water collection is required.
Manufactured from fiberglass reinforced composite material, the drainage grating offers excellent resistance to corrosion, moisture, acid and alkali conditions. Compared with traditional metal drainage products, the non-metallic composite structure provides a durable and low-maintenance solution for outdoor drainage applications.
Technical Details
- Material: Fiberglass Reinforced Composite Material
- Processing Technology: High Temperature Molding
- Product Type: FRP Drain Grating / Fiberglass Gully Grating
- Structure: Grating with Supporting Frame
- Standard: BS EN 124
Technical Specifications
| Frame Size (mm) | Cover Size (mm) | Total Height (mm) |
|---|---|---|
| 300 × 300 | 250 × 250 | 45 |
| 400 × 400 | 300 × 300 | 45 |
| 500 × 500 | 400 × 400 | 60 |
| 600 × 600 | 500 × 500 | 60 |
| 480 × 680 | 400 × 600 | 60 |
| 480 × 680 | 400 × 600 | 70 |
| 460 × 650 | 350 × 550 | 50 |
| 560 × 560 | 440 × 440 | 60 |
| 360 × 563 | 300 × 500 | 50 |
Key Features
- Fiberglass Reinforced Composite Structure – Manufactured from composite resin and glass fiber materials, providing durability and reliable performance in outdoor drainage environments.
- Corrosion and Chemical Resistance – The composite material provides resistance to corrosion, acid and alkali conditions, making it suitable for various outdoor applications.
- Anti-static and Insulating Performance – The non-metallic composite structure provides insulation characteristics and anti-static performance for specific application environments.
- High Temperature Molding Technology – Produced through high temperature molding technology to achieve a stable structure and durable performance.
- Lightweight and Easy Installation – Compared with traditional metal drainage products, the composite structure provides easier handling and installation.
- Long Service Life with Low Maintenance – The corrosion resistant material helps reduce maintenance requirements and provides long-term performance in outdoor environments.
Applications
- Drainage Ditches
- Collecting Wells
- Stormwater Drainage Systems
- Municipal Drainage Projects
- Industrial Facilities
- Outdoor Drainage Areas
- Landscape and Public Areas
