Product Overview
The modular plastic handhole chamber is an underground access solution designed for cable connection, inspection and maintenance in telecommunication, electrical and utility networks. It provides a reliable underground space for cable routing and equipment installation while offering a lightweight alternative to traditional concrete chambers.
The chamber body is manufactured from PP (Polypropylene) and assembled from separate panels with a BMC composite cover. The panel assembly structure allows the chamber to be transported in individual components and fixed together on site, reducing transportation volume and making installation more convenient.
Technical Details
- Material: PP Chamber Body + BMC Composite Cover
- Structure: Panel Assembly Design
- Connection Method: Screw Fixed Panel Assembly
- Product Type: Underground Handhole Chamber
- Application: Cable Access, Inspection and Maintenance
Technical Specifications
| Specification | Material | Static Load | Capacity |
|---|---|---|---|

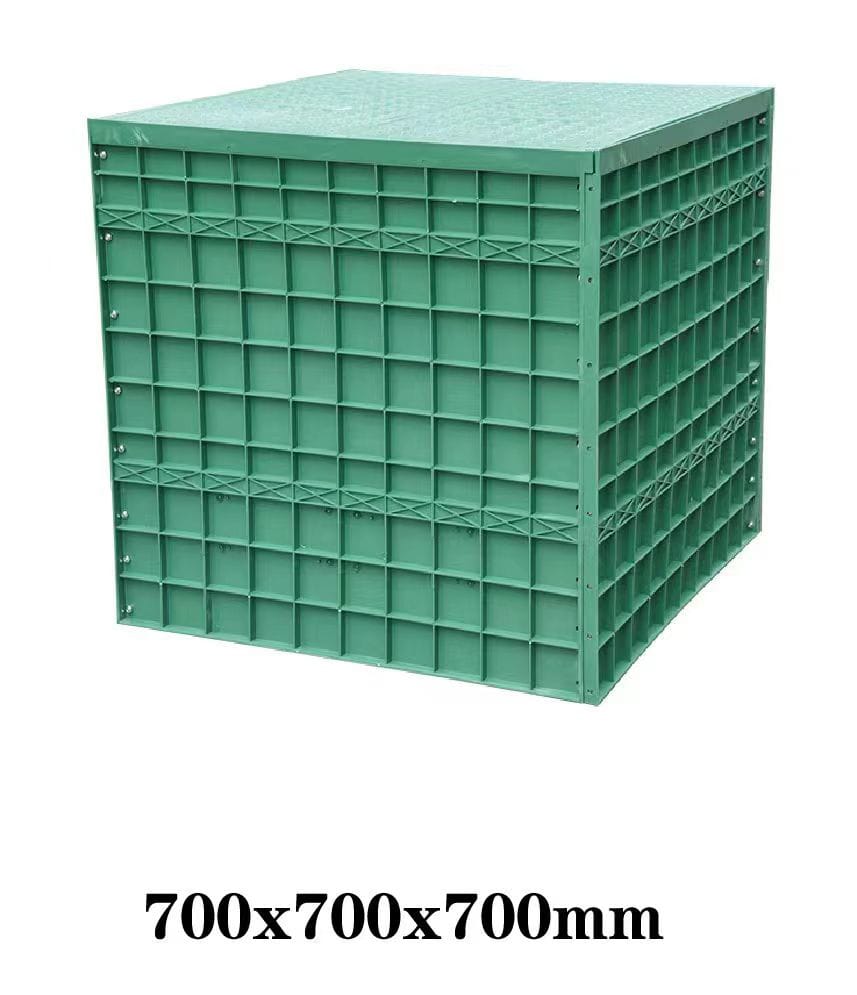

| 700 × 700 × 700 mm | PE+BMC | 500 kg | 310 L |

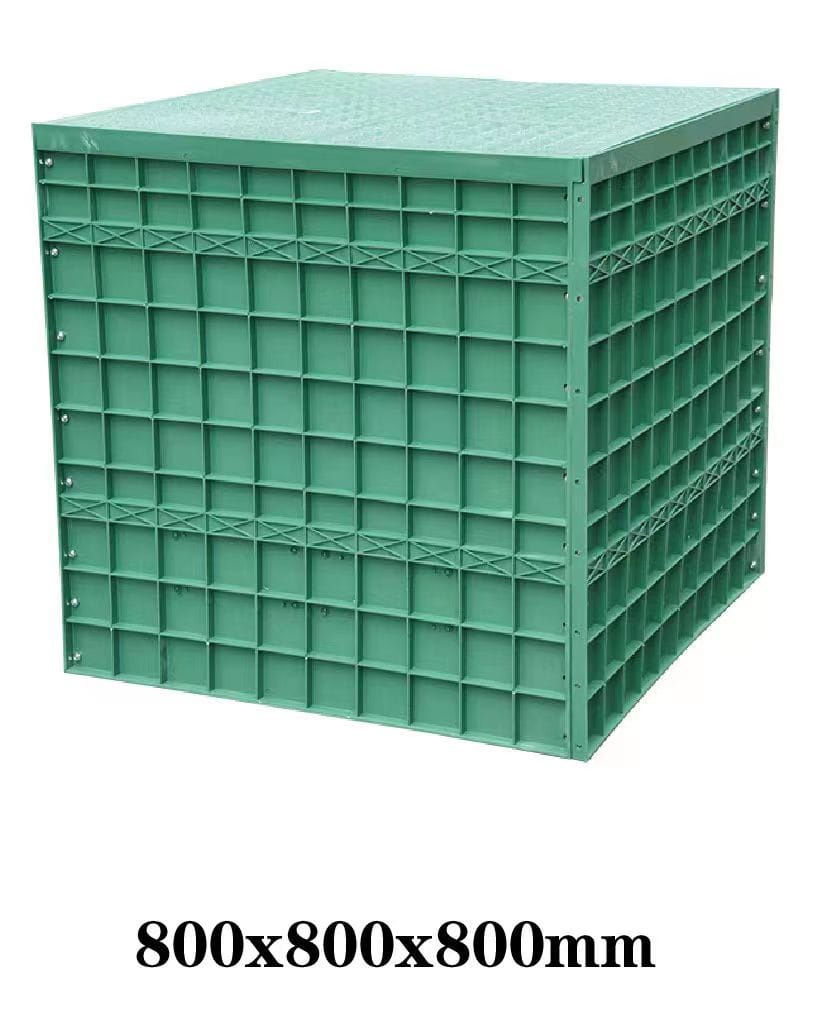

| 800 × 800 × 800 mm | PE+BMC | 500 kg | 480 L |

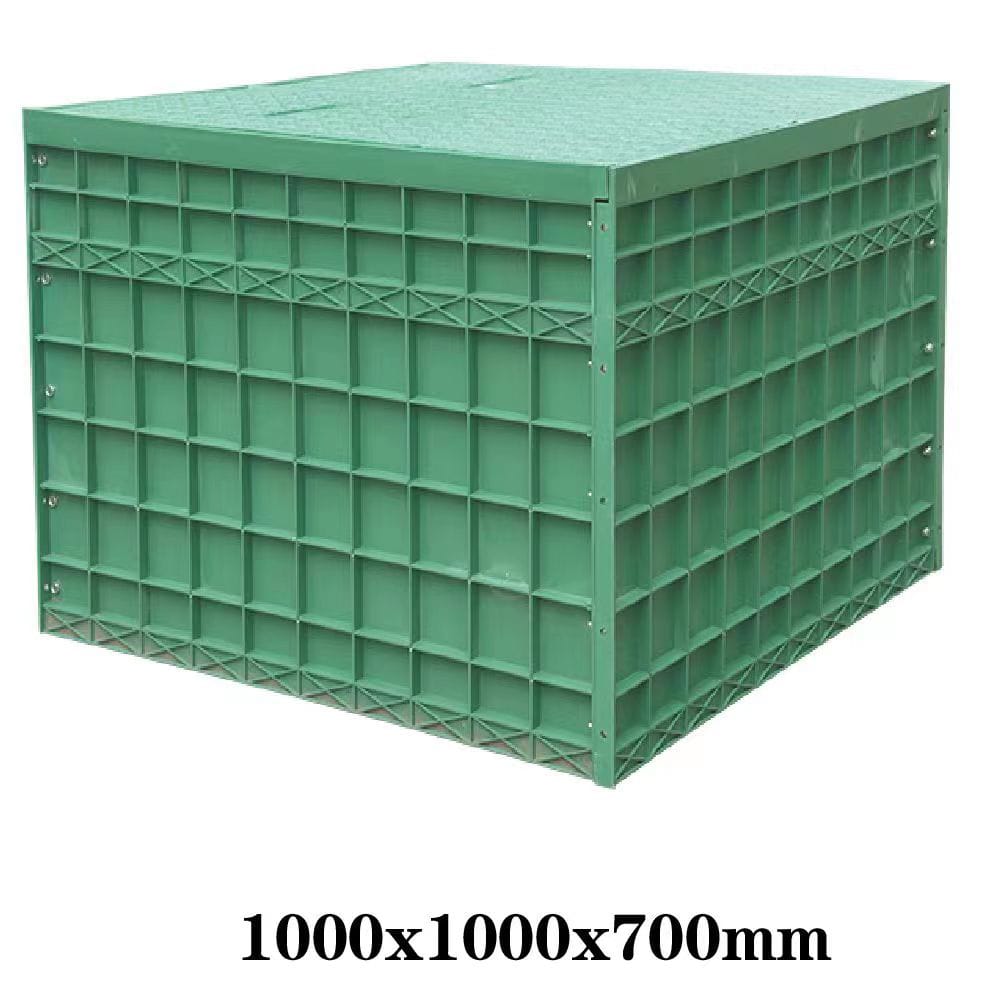

| 1000 × 1000 × 700 mm | PE+BMC | 500 kg | 650 L |
| 1000 × 1000 × 800 mm | PE+BMC | 500 kg | 750 L |

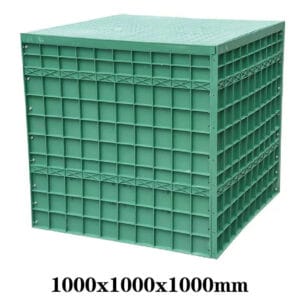

| 1000 × 1000 × 1000 mm | PE+BMC | 500 kg | 950 L |

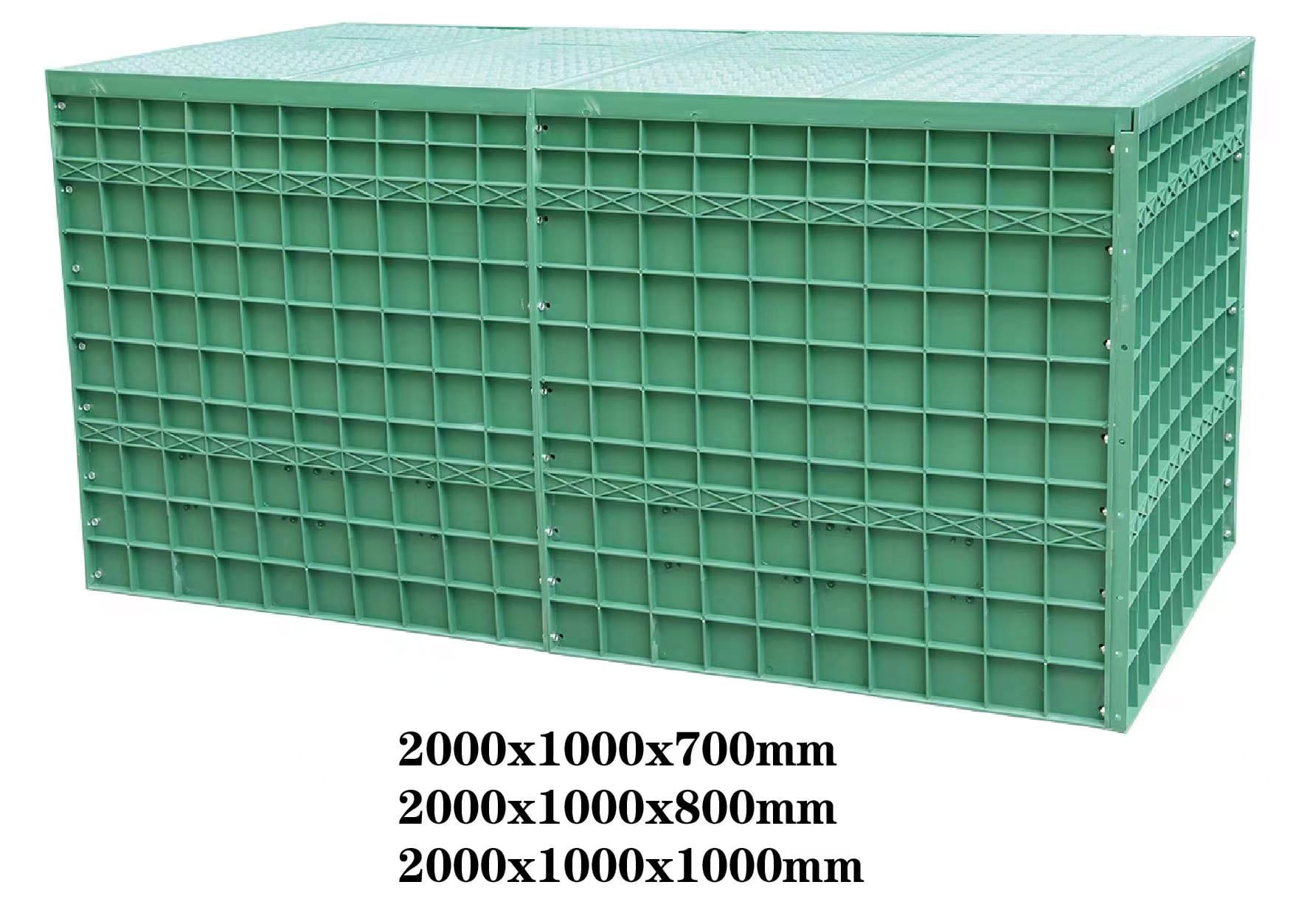

| 2000 × 1000 × 700 mm | PE+BMC | 400 kg | 1300 L |
| 2000 × 1000 × 800 mm | PE+BMC | 400 kg | 1500 L |
| 2000 × 1000 × 1000 mm | PE+BMC | 400 kg | 1900 L |
Key Features
- Panel Assembly Structure – The chamber body consists of multiple PP panels assembled and fixed with screws to form a complete underground chamber structure. This design helps reduce transportation space and simplifies on-site installation.
- Lightweight PP Chamber Body – Manufactured from polypropylene material, the chamber body provides lightweight handling, corrosion resistance and reliable performance in underground environments.
- Durable BMC Composite Cover – The BMC cover provides good mechanical performance, outdoor durability and a non-metallic access solution suitable for long-term use.
- Corrosion Resistant Performance – The PP chamber body and BMC cover are resistant to moisture, corrosion and outdoor environmental conditions, helping reduce maintenance requirements.
- Easy Transportation and Installation – Compared with traditional concrete chambers, the sectional structure allows easier transportation and more efficient installation at the project site.
- Flexible Underground Access Solution – Designed to provide convenient access for cable routing, inspection and maintenance in telecommunication, electrical and utility systems.
Applications
- Telecommunication Networks
- Electrical Cable Systems
- Fiber Optic Infrastructure
- Underground Utility Projects
- Cable Access and Inspection Systems
- Municipal Infrastructure
- Industrial Utility Installations
