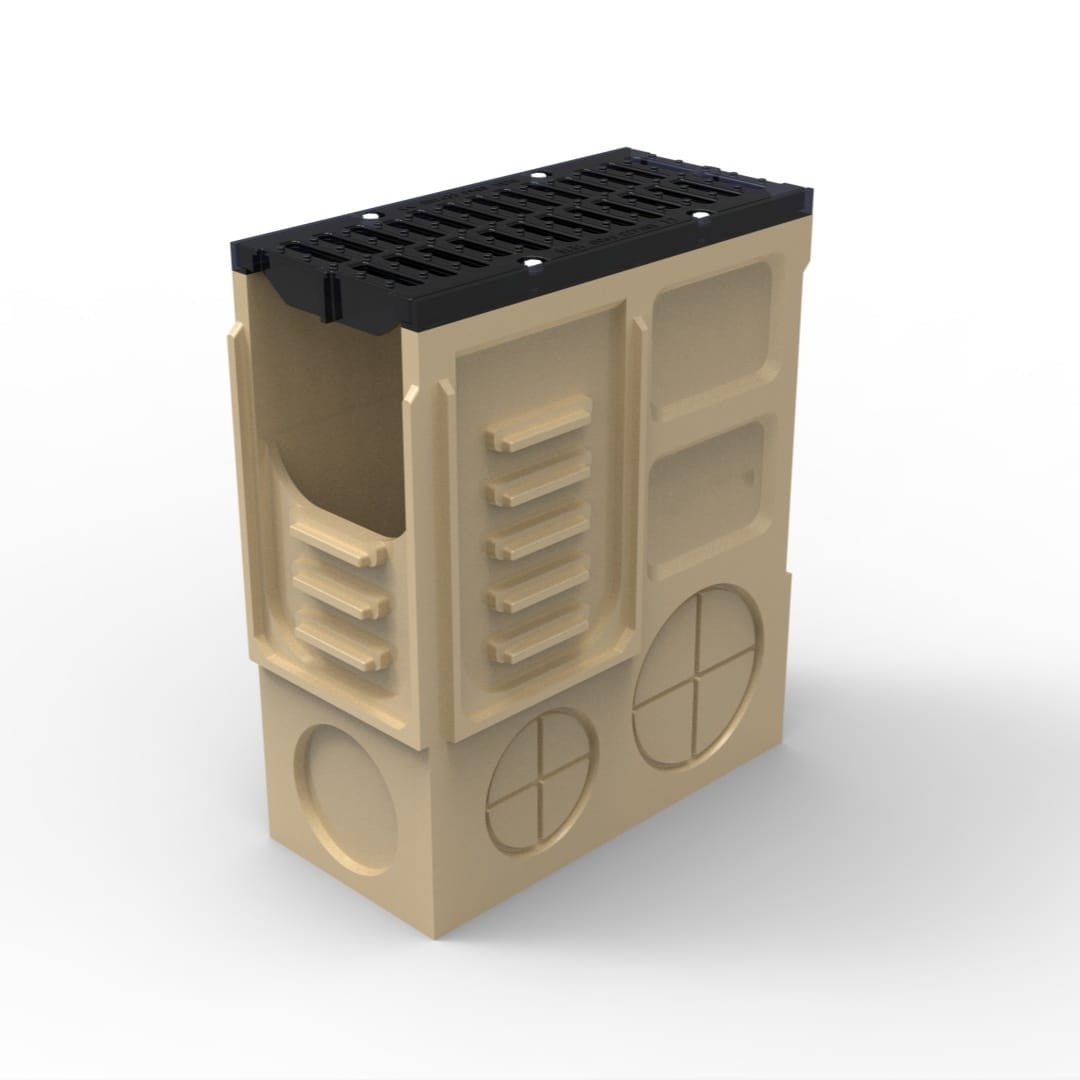

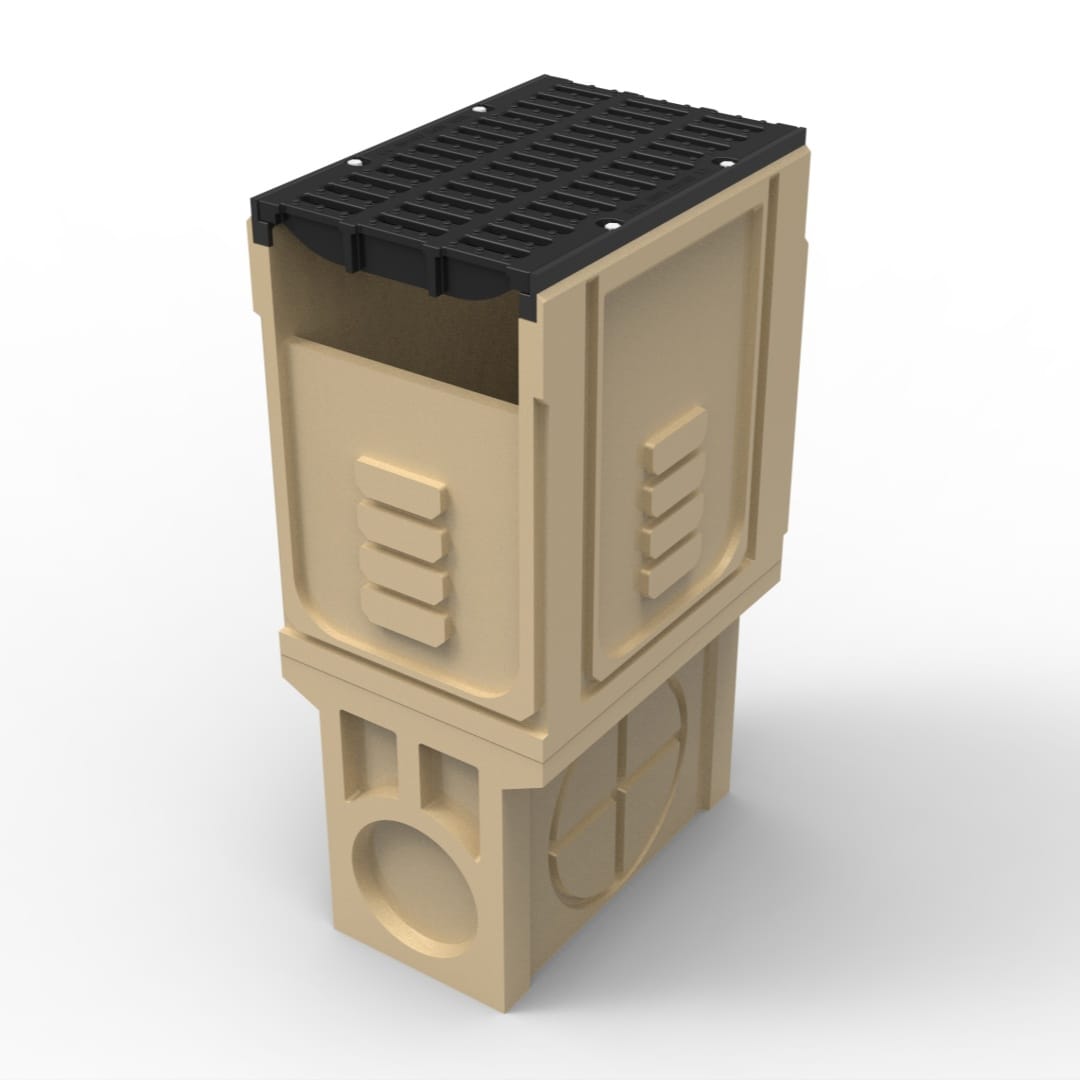

Polymer Concrete Sump
Polymer concrete sump for drainage channel systems. Designed to collect sediment and debris while providing convenient access for cleaning and maintenance.
Product Overview
The polymer concrete sump is designed for use with polymer concrete drainage channel systems. Installed at designated collection points, it helps collect sediment, leaves and other debris carried by surface water before they enter the underground drainage network.
Manufactured from polymer resin concrete, the sump offers high strength, low water absorption and resistance to corrosion, chemicals and freeze-thaw conditions. The removable grate allows convenient inspection and cleaning during routine maintenance.
Technical Details
- Material: Polymer Resin Concrete
- Standard: EN1433
- Load Class: A15 – F900
- Compatible With: Polymer Concrete Drainage Channels
Technical Specifications
| Item No. | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| L100-20DM-ID | 500 | 130 | 500 |
| L150-20DM-HD | 500 | 190 | 580 |
| L200-20DM-ID | 500 | 240 | 540 |
| L250-30DM-HD | 500 | 290 | 600 |
| L300-30DM-ID | 500 | 340 | 650 |
Additional sizes are available. Please contact us for detailed specifications.
Key Features
- Collects Sediment and Debris – Helps prevent sediment, leaves and other debris from entering the underground drainage network.
- Easy Maintenance Access – The removable grate allows convenient inspection and cleaning.
- High Compressive Strength – Suitable for applications ranging from pedestrian areas to heavy-duty traffic zones.
- Low Water Absorption – Helps maintain structural stability in wet environments.
- Chemical and Frost Resistant – Suitable for long-term outdoor installations exposed to varying environmental conditions.
Available Load Classes
- A15 – Pedestrian Areas
- B125 – Sidewalks and Car Parks
- C250 – Kerbside Areas
- D400 – Roads and Traffic Areas
- E600 – Industrial and Port Facilities
- F900 – Airports and Special Heavy-Duty Areas
FAQ
What is polymer concrete?
Polymer concrete is a composite material made from resin and mineral aggregates. It offers higher strength and lower water absorption than traditional concrete.
What load classes are available?
Our polymer concrete drainage channels are available in load classes from A15 to F900 in accordance with EN1433.
What grating materials are available?
Galvanized steel, stainless steel and ductile iron gratings are available.
Can polymer concrete drainage channels be used in vehicle traffic areas?
Yes. Depending on the selected load class, the system can be used in pedestrian areas, parking lots, roads and heavy-duty traffic zones.
What channel widths are available?
Greentech polymer concrete drainage channels are available in U100, U150, U200, U250, U300 ,U400and U500 series.
Are end caps and catch basins available?
Yes. Matching end caps and catch basins are available for the drainage system.
Why choose polymer concrete instead of traditional concrete?
Polymer concrete offers higher strength, lower water absorption and better resistance to chemicals and frost.
