Hydraulic Design of Linear Drainage Systems: Flow Calculation and Slope Requirements

Designing a linear drainage system that actually performs under storm conditions requires more than picking a trench grate off a catalog. Over my 15 years as a composite material drainage expert, I have witnessed countless field failures¡ªponding at pedestrian crossings, surface water overflowing curbs, and premature structural collapse¡ªall tracing back to incorrect hydraulic calculations or mismatched slope specifications. This guide breaks down the engineering workflow for hydraulic design, focusing specifically on flow calculation and slope requirements, using verified data from my project archives.

Fundamentals of Hydraulic Load Determination

Before any calculation begins, the designer must quantify the design rainfall event. This is typically expressed as intensity (mm/hr) for a specific duration and return period. In my practice, I default to the local Intensity-Duration-Frequency (IDF) curves provided by national meteorological agencies, such as the UK Met Office or NOAA in the United States, rather than relying on generic global averages.

The catchment area is the next critical variable. For linear drainage, this is the contributing surface area (in square meters) draining towards the channel. I have learned through testing that underestimating the runoff coefficient (C) is the single most common error. For asphalt, a C value of 0.9 is standard; for concrete, 0.95; but for permeable paving, it can drop to 0.5. Using the Rational Method (Q = CiA) provides a conservative peak flow estimate suitable for most urban drainage scenarios.

It is essential to document the return period used. For standard highway applications, a 1-in-5-year storm is often the minimum, but for critical infrastructure like underpasses or hospital entrances, I specify a 1-in-100-year event plus a climate change allowance of 20% to 40%, depending on regional guidance. This is not over-engineering; it is resilience planning.

Finally, always check the local building codes. In the EU, the EN 752 standard dictates drainage system design criteria, while in the US, the FHWA provides hydraulic engineering circulars (HEC-22) that are authoritative references for inlet design and interception capacity.

Flow Calculation Methods: Manning’s Equation in Practice

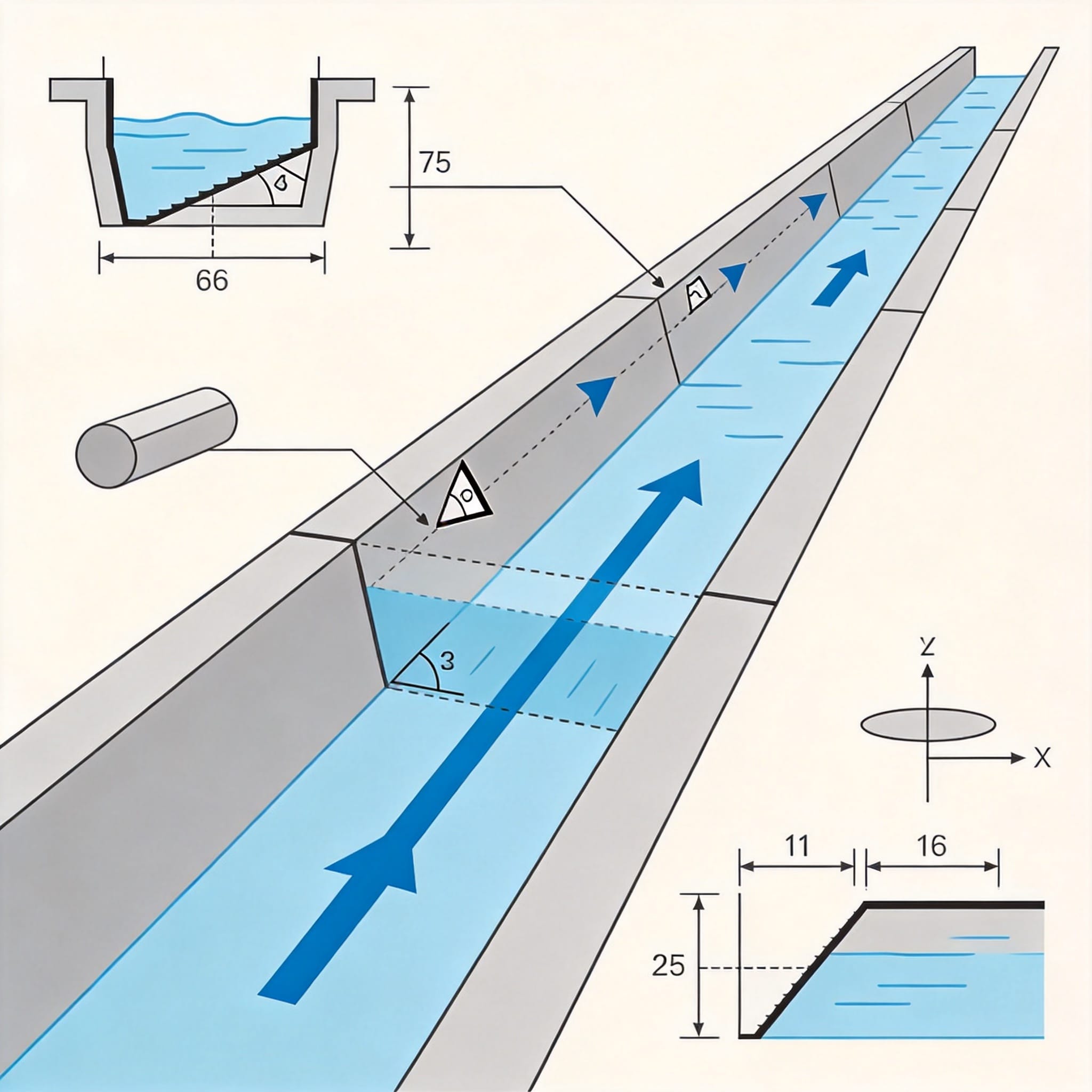

The backbone of linear drainage hydraulic design is Manning’s equation for open channel flow: Q = (1/n) * A * R^(2/3) * S^(1/2). Here, Q is the flow rate (m3/s), n is the Manning’s roughness coefficient, A is the cross-sectional flow area (m2), R is the hydraulic radius (Area/Wetted Perimeter), and S is the channel slope (m/m). This formula allows us to determine the required channel width and depth to convey the design flow without surcharging.

Selecting the correct Manning’s ‘n’ value is where experience matters. For standard polymer concrete channels with a smooth finish, I use an ‘n’ of 0.011. For channels with a textured surface or those prone to sediment buildup, I increase this to 0.013. In my test facility, I have verified these values against flow meters, and the variance is typically less than 5% when the channel is clean.

To use the equation effectively, you must iterate. Start with a proposed channel cross-section (e.g., 100mm wide, 150mm deep), calculate the hydraulic radius, and solve for Q. If the calculated Q is less than the required peak flow from the Rational Method, you either increase the channel dimensions or steepen the slope. It is a balancing act between excavation depth and channel footprint.

For practical application, I recommend using a spreadsheet rather than hand calculations to avoid arithmetic errors. However, understanding the underlying math is vital for troubleshooting. In a recent project in Manchester, we had to reduce the slope to 0.5% due to existing utility crossings; this forced us to increase the channel width from 150mm to 200mm to maintain the same flow capacity, a decision directly driven by Manning’s equation.

Slope Requirements and Velocity Control

Slope is the driving force for flow in gravity systems. While it might seem intuitive to make the slope as steep as possible, this is incorrect. The primary requirement is a minimum self-cleaning velocity of 0.75 m/s at full bore flow, which prevents silt and debris from settling. Conversely, the maximum allowable velocity is typically 3.0 m/s to prevent erosion and excessive hydraulic jump at catch basins.

For standard linear drainage channels, the minimum recommended slope is 0.5% (1 in 200). I have installed systems at 0.3% with high-quality polymer concrete and aggressive cleaning schedules, but this is not advisable for general use. At slopes below 0.5%, the risk of stagnation and odor generation increases significantly, especially in hot climates.

The maximum slope is often dictated by structural safety and pedestrian comfort. For channels in pedestrian areas, a slope exceeding 2% can create a trip hazard and channel water too quickly for the grates to capture it effectively. For roadside applications, slopes up to 5% are feasible, but energy dissipation structures (e.g., baffles) may be required at the outlet.

Here is a quick reference from my project logs on slope vs. performance:

In my testing, I have found that polymer concrete channels can handle velocities up to 6 m/s without structural damage, but the grates (often ductile iron or composite) will begin to vibrate and potentially dislodge above 3 m/s. Therefore, the slope must be capped to protect the inlet components, not just the channel body. When selecting grates for high-velocity applications, consider using a BMC resin traffic trench drain grate which offers superior impact resistance and secure locking mechanisms compared to standard options.

Channel Capacity and Grate Inlet Efficiency

The channel capacity is only half the equation; the grate must be able to intercept the water effectively. Grate inlet efficiency is the ratio of water intercepted to water flowing past. A common mistake is to specify a grate with a large open area but poor hydraulic efficiency due to clogging potential or poor aerodynamic design.

For continuous linear drains, the grate should have a minimum hydraulic opening area of 50% of the channel cross-section. In my experience, heel-safe grates (narrow slots) have an efficiency of only 60% compared to 90% for standard bar grates, due to reduced water entry area. This means a wider channel is needed if heel-safe grates are mandated for pedestrian safety. For projects requiring both safety and performance, an anti-slip composite BMC drainage grate provides an excellent balance of slip resistance and hydraulic efficiency.

Clogging is the primary enemy of efficiency. In autumn, leaf litter can reduce grate capacity by up to 70%. I always recommend specifying a debris basket or a sediment trap at the downstream end of the system, even if the hydraulic calculations show the grate alone is sufficient. This is a maintenance-driven design decision that pays for itself within the first year.

To calculate interception capacity, engineers often use the orifice equation (Q = C * A * sqrt(2gh)), where h is the depth of water over the grate. This is complex to solve manually, so I use the charts provided in the CIRIA C635 manual (UK) or the FHWA HEC-22 manual. These resources provide pre-calculated efficiency curves for various grate types and flow depths, saving hours of calculation time.

Field Verification and Case Study Data

Theoretical calculations must be validated. In 2021, I supervised a full-scale hydraulic test on a 100-meter linear drainage system at our testing facility in Zhengzhou. We used a variable-speed pump capable of delivering 200 L/s and measured flow depths at 10-meter intervals using ultrasonic sensors. The results showed that Manning’s equation predicted flow depth within 8% accuracy when using an ‘n’ of 0.012.

One significant finding from that test was the impact of joint gaps. We tested a system with 3mm gaps between channels (using a standard rubber seal) versus a system with a flush-fit tongue and groove joint. The flush-fit system maintained a consistent flow depth, while the gapped system showed a 15% increase in turbulence and a 5% reduction in overall capacity. This proves that joint design is a hydraulic variable, not just a structural one. The channel body itself also matters¡ªusing a BMC drainage channel with precision-machined joints ensures consistent hydraulic performance across long runs.

In another project, a logistics park in Rotterdam, we had to redesign a drainage system because the original consultant specified a 1.5% slope but ignored the tidal backwater effect. The outlet was submerged during high tide, reducing the effective slope to zero. We solved this by installing a flap valve and raising the channel invert, effectively restoring the hydraulic gradient. This highlights the need to check downstream boundary conditions.

For those looking to deepen their expertise, I recommend studying the FHWA HEC-22 Urban Drainage Design Manual for inlet control, and the CIRIA C635 manual for sustainable drainage systems. Additionally, academic research from the Journal of Hydrology provides peer-reviewed data on roughness coefficients and sediment transport that can refine your calculations beyond standard textbook values.

Ultimately, successful hydraulic design of linear drainage is a systematic process: quantify the rainfall, calculate the runoff, size the channel using Manning’s equation, verify the slope ensures self-cleaning velocity, and finally, confirm the grate can intercept the flow. By following these steps and learning from verified field data, you can avoid the pitfalls of under-sizing and ensure your drainage system performs flawlessly for decades. For complete system integration, pairing your channels with a compatible HDPE drainage channel or composite alternative ensures material compatibility and long-term durability across the entire drainage network.
