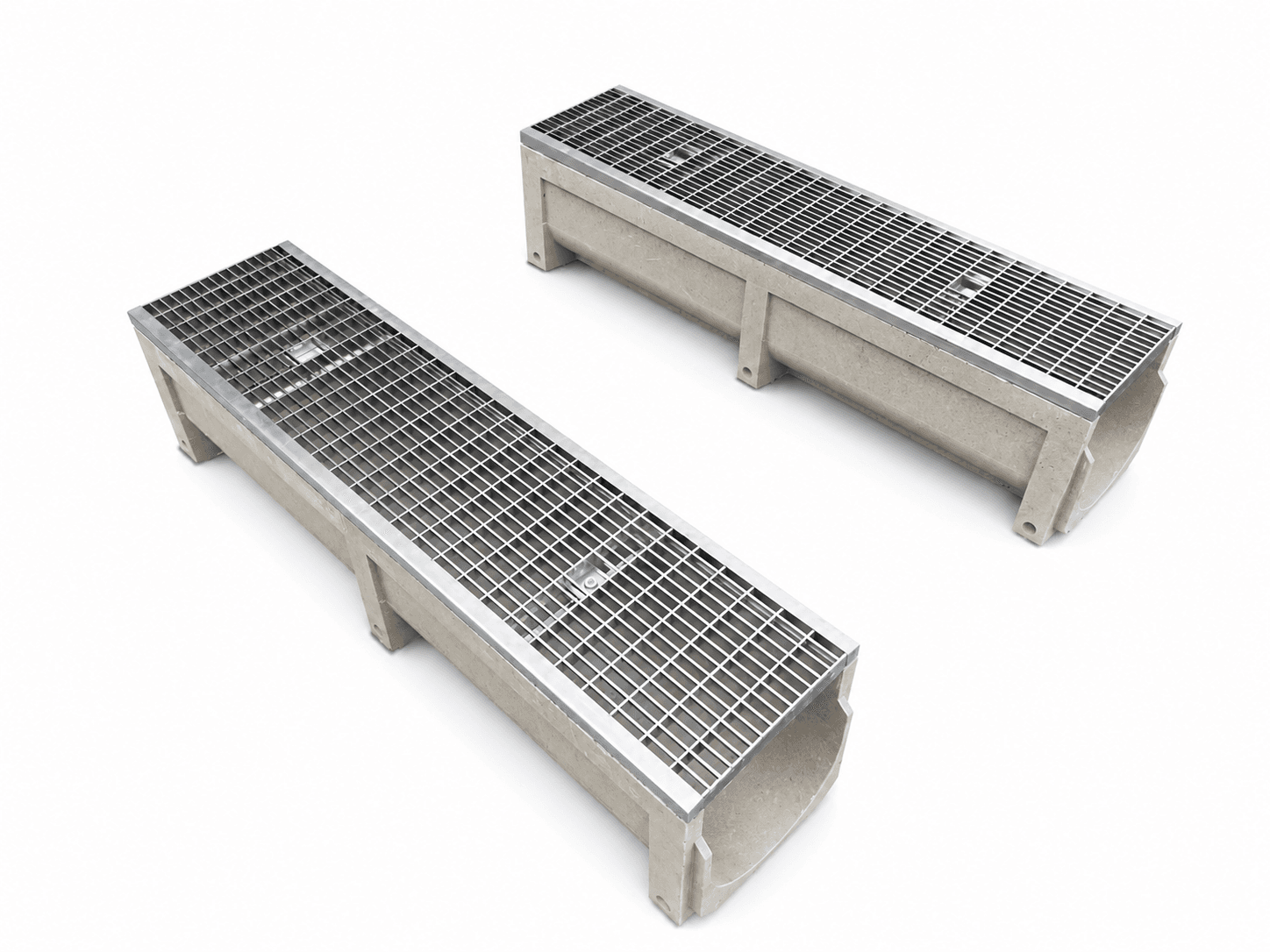

U100 Polymer Concrete Drainage Channel
U100 polymer concrete drainage channel system with 100 mm hydraulic width. Available with multiple grating options and load classes from A15 to D400.
Product Overview
The U100 polymer concrete drainage channel is designed for the collection and conveyance of surface water in pedestrian, commercial and municipal applications. The system features a 100 mm hydraulic width and can be supplied with galvanized steel, stainless steel, ductile iron or composite gratings.
Manufactured from polymer resin concrete, the channel offers high compressive strength, low water absorption and resistance to chemicals, frost and corrosion. Different channel depths and load classes are available to meet project requirements.
Technical Details
- Material: Polymer Resin Concrete
- Inner Width: 100 mm
- Standard: EN1433
- Load Class: A15 – F900
- Channel Length: 1000 mm
- Grating Options: Galvanized Steel, Stainless Steel, Ductile Iron
Technical Specifications
| Item No. | Inner Width (mm) | Total Width (mm) | Length (mm) | Inner Height (mm) | Total Height (mm) | Matched Cover Plate Size (mm) |
|---|---|---|---|---|---|---|
| U100-1509GS | 100 | 130 | 1000 | 80 | 95 | 500 × 123 |
| U100-1515GS | 100 | 130 | 1000 | 130 | 150 | 500 × 123 |
| U100-1520GS | 100 | 130 | 1000 | 180 | 200 | 500 × 123 |
| U100-1525GS | 100 | 130 | 1000 | 230 | 250 | 500 × 123 |
| U100-1530GS | 100 | 130 | 1000 | 280 | 300 | 500 × 123 |
| U100-2015GS | 100 | 140 | 1000 | 130 | 150 | 500 × 123 |
| U100-2020GS | 100 | 140 | 1000 | 180 | 200 | 500 × 123 |
| U100-2025GS | 100 | 140 | 1000 | 230 | 250 | 500 × 123 |
| U100-2030GS | 100 | 140 | 1000 | 280 | 300 | 500 × 123 |
Key Features
- High Compressive Strength – Polymer resin concrete provides excellent mechanical strength for long-term service.
- Low Water Absorption – Water absorption is less than 0.05%, helping maintain structural stability in wet environments.
- Chemical Resistant – Suitable for applications exposed to oils, salts and common chemicals.
- Smooth Internal Surface – The dense surface structure helps improve water flow and reduces sediment accumulation.
- Frost Resistant – Suitable for outdoor installations exposed to freeze-thaw conditions.
Available Load Classes
- A15 – Pedestrian Areas
- B125 – Sidewalks and Car Parks
- C250 – Kerbside Areas
- D400 – Roads and Traffic Areas
- E600 – Industrial and Port Facilities
- F900 – Airports and Special Heavy-Duty Areas
FAQ
What is polymer concrete?
Polymer concrete is a composite material made from resin and mineral aggregates. It offers higher strength and lower water absorption than traditional concrete.
What load classes are available?
Our polymer concrete drainage channels are available in load classes from A15 to F900 in accordance with EN1433.
What grating materials are available?
Galvanized steel, stainless steel and ductile iron gratings are available.
Can polymer concrete drainage channels be used in vehicle traffic areas?
Yes. Depending on the selected load class, the system can be used in pedestrian areas, parking lots, roads and heavy-duty traffic zones.
What channel widths are available?
Greentech polymer concrete drainage channels are available in U100, U150, U200, U250, U300, U400 and U500 series.
Are end caps and catch basins available?
Yes. Matching end caps and catch basins are available for the drainage system.
Why choose polymer concrete instead of traditional concrete?
Polymer concrete offers higher strength, lower water absorption and better resistance to chemicals and frost.
