Product Overview

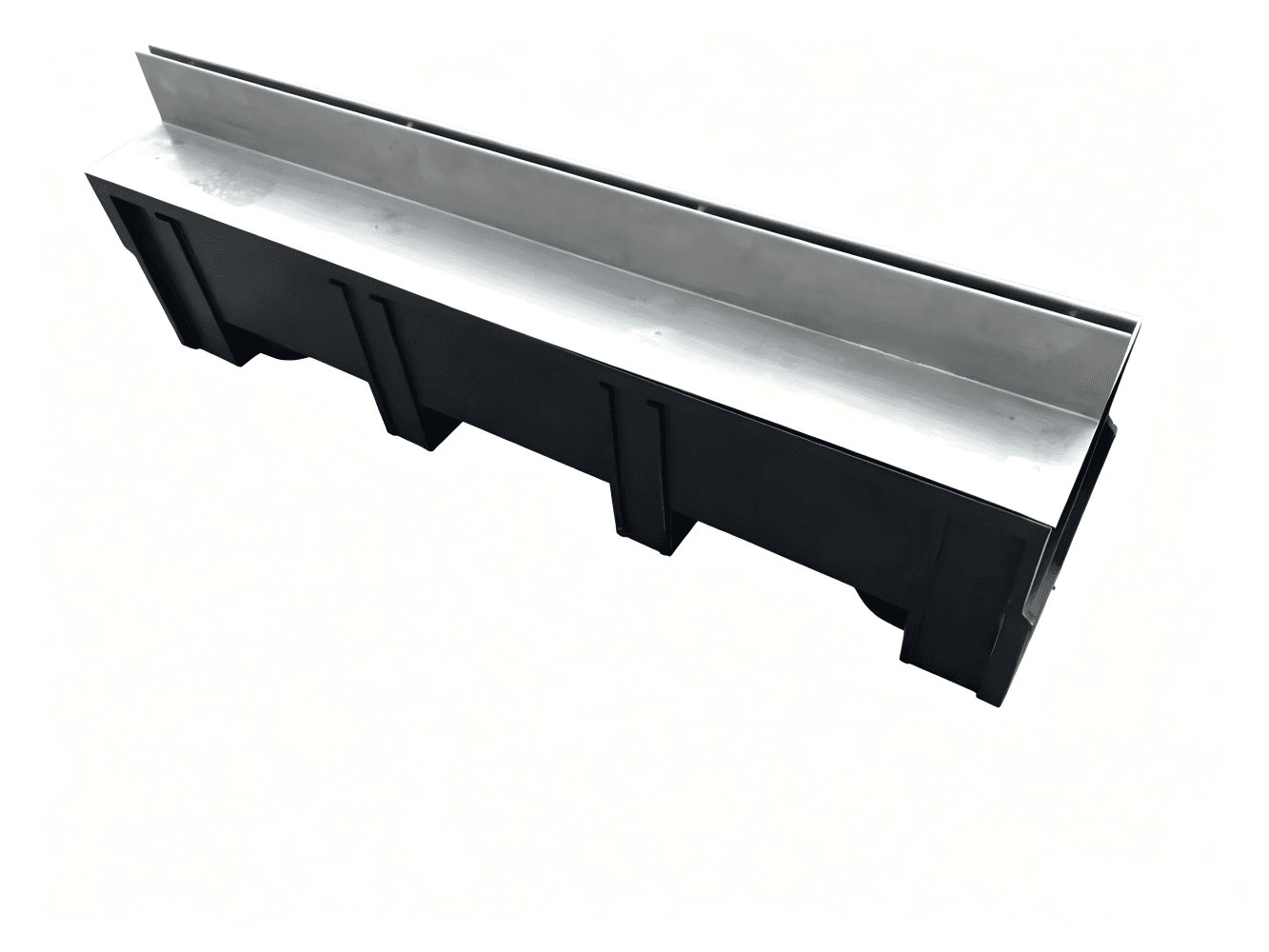

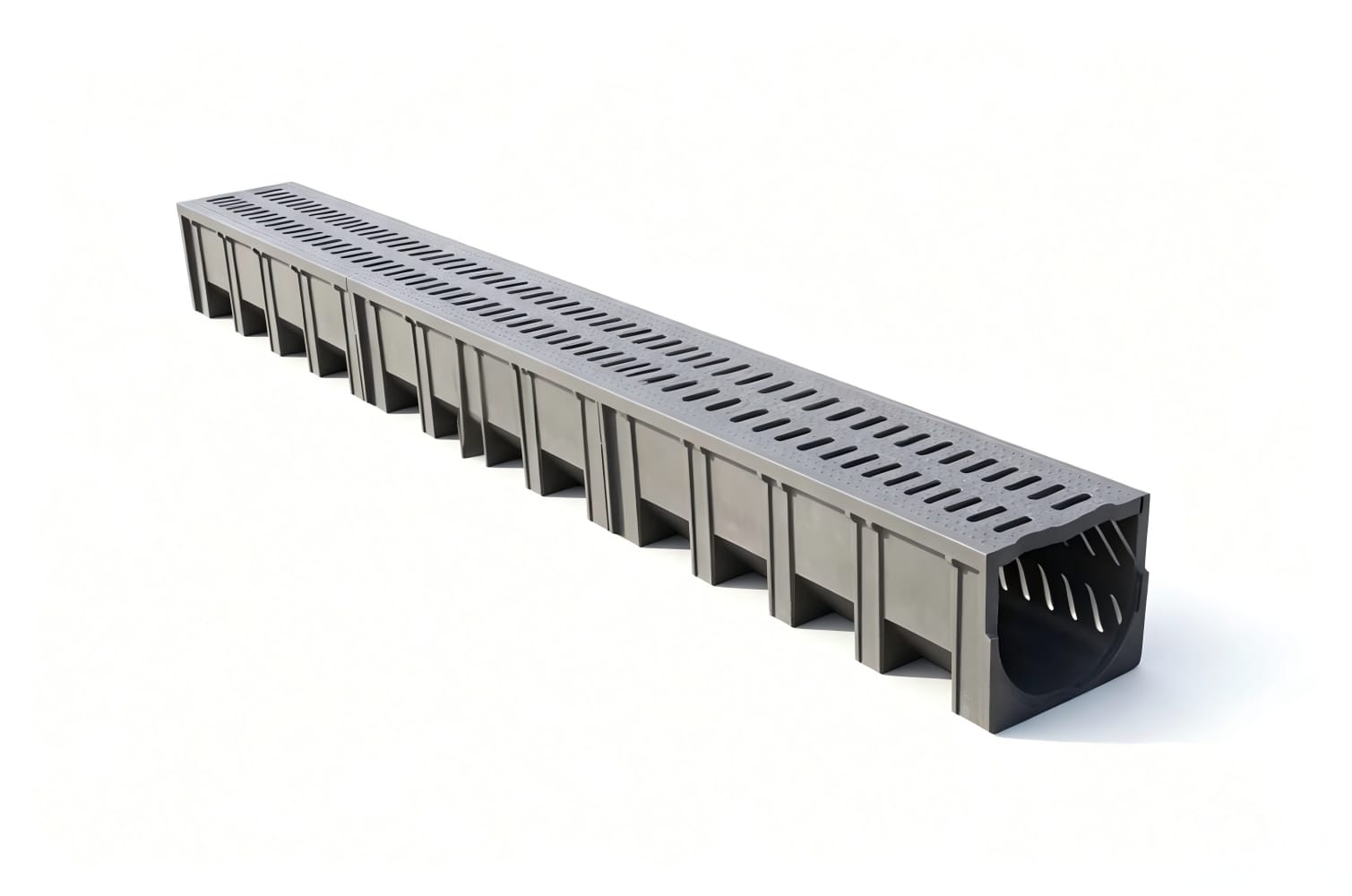

The U150 BMC drainage channel is a medium-capacity surface water drainage system designed for residential developments, landscape projects and light commercial applications. With a 150 mm inner width, it provides greater drainage capacity than compact channels while maintaining the advantages of a lightweight composite structure.
Manufactured from fiberglass reinforced BMC composite, this channel combines high mechanical strength with excellent corrosion resistance and electrical insulation. The non-metallic construction ensures reliable long-term performance without rust or degradation, making it suitable for humid and demanding outdoor environments.
Key Features
Increased Water Capacity
The 150 mm inner width provides improved surface water collection compared with compact drainage channels, making it suitable for residential driveways, pedestrian areas and landscape projects where reliable drainage is essential.
Fiberglass Reinforced Composite
Engineered with fiberglass reinforced BMC material, the channel provides excellent mechanical strength and impact resistance while maintaining a lightweight profile suitable for a wide range of drainage applications.
Corrosion Resistant
The non-metallic composite construction offers superior resistance to moisture, weathering and commonly encountered chemicals. The channel maintains structural integrity in humid and coastal environments without rust or corrosion.
Electrical Insulation
The non-metallic material provides reliable electrical insulation, making the channel suitable for installation in environments where electrical safety considerations apply.
Multiple Grating Options
Available with BMC composite, galvanised steel, stainless steel or ductile iron gratings, the system can be configured to meet specific load requirements, aesthetic preferences and project specifications.
Technical Specifications
- Material: BMC (Bulk Molding Compound) – Fiberglass Reinforced
- Inner Width: 150 mm
- Standard: EN1433
- Load Class: A15 – D400 (depending on grating selection)
- Channel Length: 1000 mm per section
- Grating Options: BMC Composite, Galvanised Steel, Stainless Steel, Ductile Iron
Dimensional Specifications
| Model | Weight (kg) | Grating Width (mm) | Overall Width (mm) | Inner Width (mm) | Inner Height (mm) | Overall Height (mm) | L-Shape Height (mm) |
|---|---|---|---|---|---|---|---|
| U150-190-1000 | 9.3 | 172 | 190 | 150 | 155 | 190 | 20 |
| U150-250-1000 | 18.2 | 173 | 200 | 145 | 210 | 250 | 20 |
| U150-300-1000 | 21.0 | 172 | 190 | 143 | 260 | 300 | 20 |
| U150-350-1000 | 22.5 | 170 | 192 | 140 | 310 | 350 | 20 |
| U150-400-1000 | 25.0 | 170 | 190 | 140 | 360 | 400 | 20 |
Applications
- Residential developments and driveways
- Landscape projects and garden areas
- Parks and public gardens
- Sidewalks and pedestrian walkways
- Courtyards and outdoor public spaces
- Light commercial areas and retail plazas
- Community facilities and recreational areas
Frequently Asked Questions
What is the drainage capacity of the U150 compared with smaller channels?
The U150 provides significantly greater water collection capacity than U80 or U100 channels due to its wider cross-section. This makes it suitable for residential driveways, landscape projects and light commercial applications where higher water volumes are expected.
Is the U150 suitable for vehicle access areas?
Yes. The U150 system is available with load class ratings up to D400, making it suitable for vehicle access areas when fitted with appropriate heavy-duty gratings such as ductile iron or stainless steel options.
Can the U150 channel be connected to existing drainage systems?
Yes. The modular design includes standard connection points that can be adapted to interface with most common drainage outlet configurations. Please consult the installation guidelines or contact our technical team for specific integration requirements.
