Product Overview

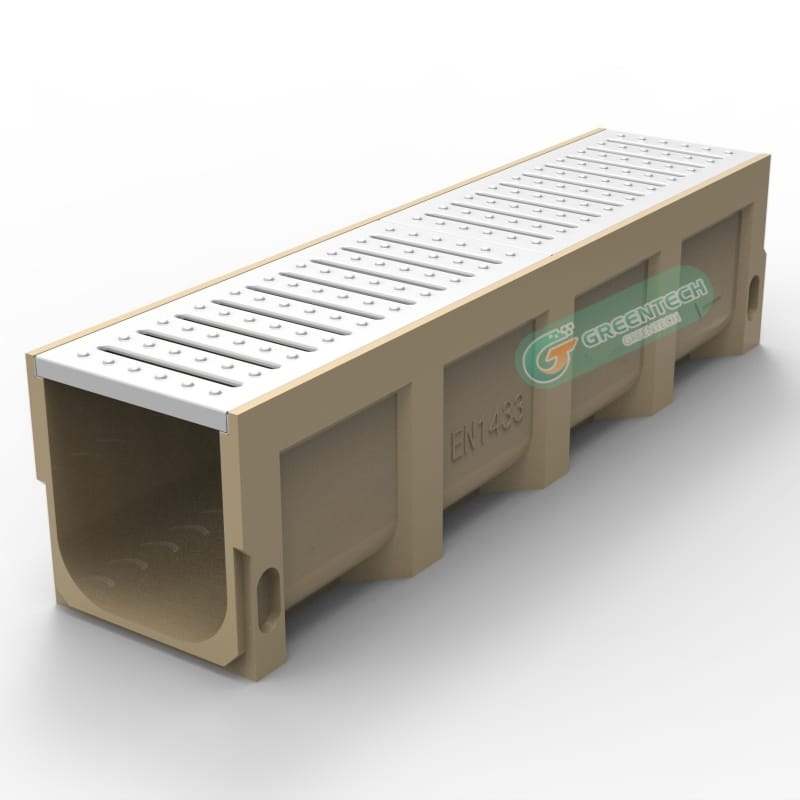

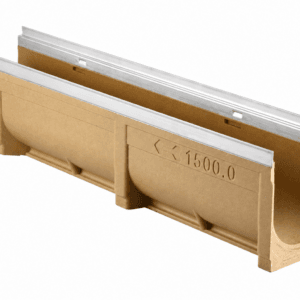

The U150 polymer concrete drainage channel is designed for surface water drainage in commercial, municipal and industrial applications. The system features a 150 mm inner width and is available with a range of channel depths and grating options.
Manufactured from polymer resin concrete, the channel offers high compressive strength, low water absorption and resistance to chemicals, frost and corrosion.
Technical Details
- Material: Polymer Resin Concrete
- Inner Width: 150 mm
- Standard: EN1433
- Load Class: A15 – F900
- Channel Length: 1000 mm

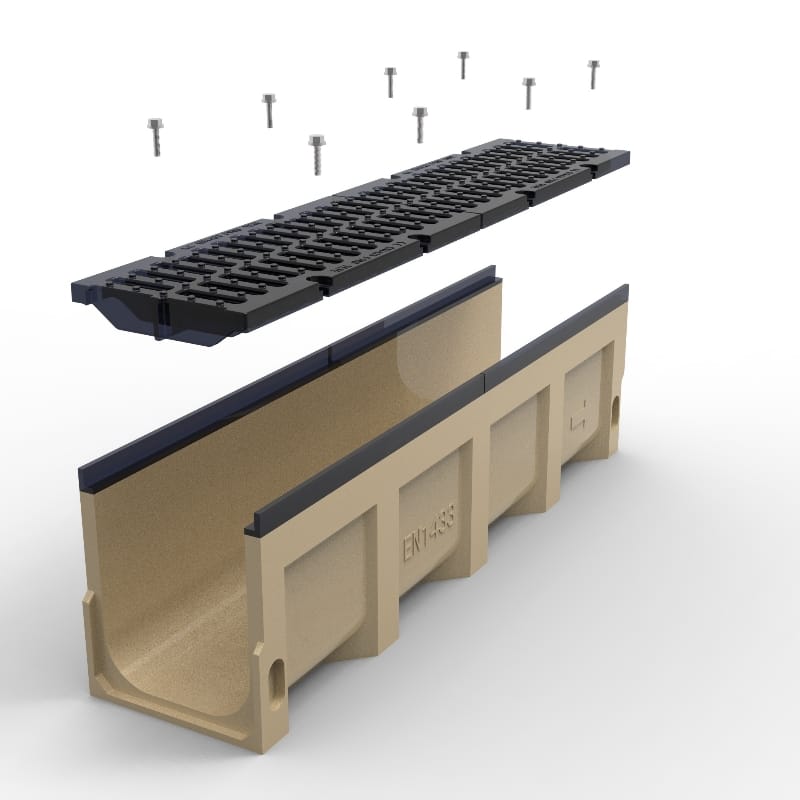

- Grating Options: Galvanized Steel, Stainless Steel, Ductile Iron
Technical Specifications
| Item No. | Inner Width (mm) | Total Width (mm) | Length (mm) | Inner Height (mm) | Total Height (mm) | Matched Cover Plate Size (mm) |
|---|---|---|---|---|---|---|
| U150-15150GS | 150 | 180 | 1000 | 160 | 180 | 500 × 173 |
| U150-15230GS | 150 | 180 | 1000 | 210 | 230 | 500 × 173 |
| U150-15280GS | 150 | 180 | 1000 | 260 | 280 | 500 × 173 |
| U150-15330GS | 150 | 180 | 1000 | 310 | 330 | 500 × 173 |
| U150-20180GS | 150 | 190 | 1000 | 160 | 180 | 500 × 173 |
| U150-20230GS | 150 | 190 | 1000 | 210 | 230 | 500 × 173 |
| U150-20280GS | 150 | 190 | 1000 | 260 | 280 | 500 × 173 |
| U150-20330GS | 150 | 190 | 1000 | 310 | 330 | 500 × 173 |
Key Features
- High Compressive Strength – Suitable for applications ranging from pedestrian areas to heavy-duty traffic zones.
- Low Water Absorption – Helps maintain dimensional stability in wet environments.
- Chemical Resistant – Resistant to oils, salts and many commonly encountered chemicals.
- Frost Resistant – Suitable for outdoor installations exposed to freeze-thaw conditions.
- Smooth Internal Surface – Helps improve water flow and reduce sediment build-up.
Available Load Classes
- A15 – Pedestrian Areas
- B125 – Sidewalks and Car Parks
- C250 – Kerbside Areas
- D400 – Roads and Traffic Areas
- E600 – Industrial and Port Facilities
- F900 – Airports and Special Heavy-Duty Areas
FAQ
What is polymer concrete?
Polymer concrete is a composite material made from resin and mineral aggregates. It offers higher strength and lower water absorption than traditional concrete.
What load classes are available?
Our polymer concrete drainage channels are available in load classes from A15 to F900 in accordance with EN1433.
What grating materials are available?
Galvanized steel, stainless steel and ductile iron gratings are available.
Can polymer concrete drainage channels be used in vehicle traffic areas?
Yes. Depending on the selected load class, the system can be used in pedestrian areas, parking lots, roads and heavy-duty traffic zones.
What channel widths are available?
Greentech polymer concrete drainage channels are available in U100, U150, U200, U250, U300, U400 and U500 series.
Are end caps and catch basins available?
Yes. Matching end caps and catch basins are available for the drainage system.
Why choose polymer concrete instead of traditional concrete?
Polymer concrete offers higher strength, lower water absorption and better resistance to chemicals and frost.
