Product Overview

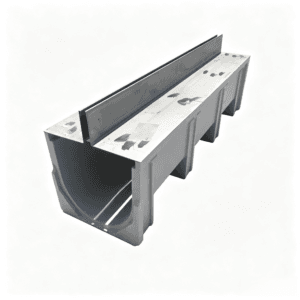

The U250 BMC drainage channel is a versatile surface water drainage system designed for commercial and municipal projects requiring reliable water collection across larger paved areas. With a 250 mm inner width, it delivers efficient drainage performance for urban streets, public facilities and commercial developments.
Manufactured from fiberglass reinforced BMC composite, this channel combines high mechanical strength with lightweight construction, excellent corrosion resistance and electrical insulation. The non-metallic construction ensures long-term outdoor durability without rust or degradation, even in demanding environmental conditions.
Key Features
Versatile Drainage Solution
The 250 mm inner width provides effective water collection for a wide range of commercial, municipal and public drainage applications, from urban streets to large commercial developments.
Fiberglass Reinforced Composite
Engineered with fiberglass reinforced BMC material, the channel delivers excellent mechanical strength and impact resistance while maintaining a lightweight profile that simplifies installation.
Corrosion Resistant
The non-metallic composite construction offers superior resistance to moisture, road salts, de-icing chemicals and environmental contaminants, maintaining structural integrity in humid and demanding conditions.
Electrical Insulation
The non-metallic material provides reliable electrical insulation, making the channel suitable for a wide range of applications.

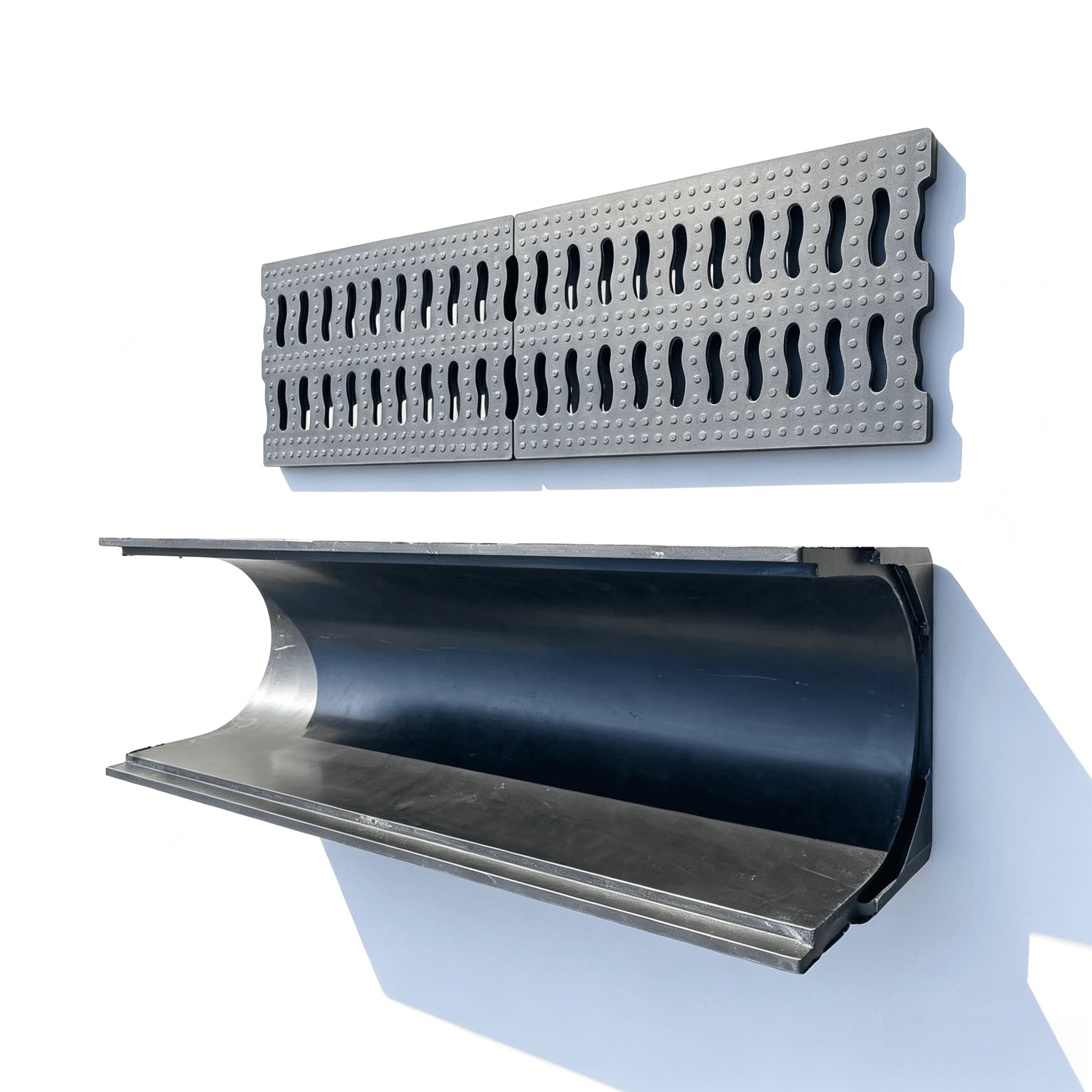

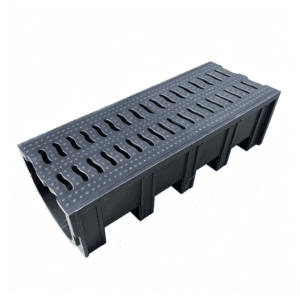

Multiple Grating Options
Available with BMC composite, galvanised steel, stainless steel or ductile iron gratings, the system can be configured to meet specific load requirements and project specifications.
Technical Specifications
- Material: BMC (Bulk Molding Compound) – Fiberglass Reinforced
- Inner Width: 250 mm
- Standard: EN1433
- Load Class: A15 – D400 (depending on grating selection)
- Channel Length: 1000 mm per section
- Grating Options: BMC Composite, Galvanised Steel, Stainless Steel, Ductile Iron
Dimensional Specifications
| Model | Weight (kg) | Grating Width (mm) | Overall Width (mm) | Inner Width (mm) | Inner Height (mm) | Overall Height (mm) | L-Shape Height (mm) |
|---|---|---|---|---|---|---|---|
| U250-263-1000 | 22.0 | 288 | 310 | 245 | 230 | 263 | 20 |
| U250-300-1000 | 22.5 | 288 | 325 | 245 | 265 | 300 | 20 |
| U250-350-1000 | 24.5 | 290 | 335 | 245 | 315 | 350 | 20 |
| U250-400-1000 | 38.5 | 288 | 310 | 247 | 360 | 400 | 20 |
| U250-450-1000 | 38.9 | 288 | 308 | 247 | 410 | 450 | 20 |
Applications
- Commercial developments and retail centres
- Municipal roads and urban streets
- Public facilities and civic buildings
- Parking areas and multi-storey car parks
- Urban streets and public spaces
- Schools and educational facilities
- Landscape projects and park areas
Frequently Asked Questions
What is the difference between U250 and U200 channels?
The U250 offers a wider 250 mm inner width compared with the U200, providing increased water collection capacity for larger paved areas. The choice between the two depends on the expected water volume and catchment area of your specific project.
Is the U250 suitable for municipal street drainage?
Yes. The U250 is specifically designed for municipal and urban street drainage applications. It is available with load class ratings appropriate for roadway use and provides reliable long-term performance in demanding outdoor environments.
Can the U250 channel be customised with different grating materials?
Yes. The U250 system is available with BMC composite, galvanised steel, stainless steel and ductile iron gratings. Each material offers different load capacities and aesthetic characteristics to suit specific project requirements.
