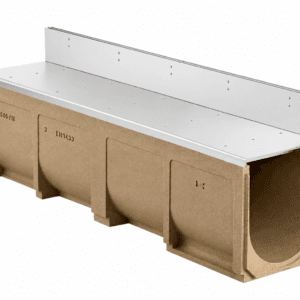

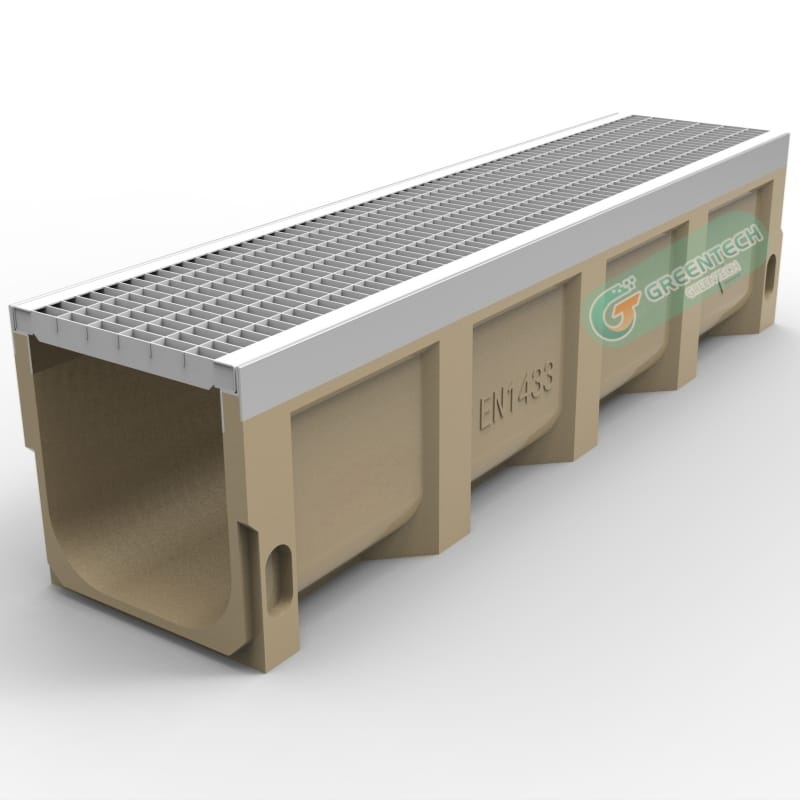

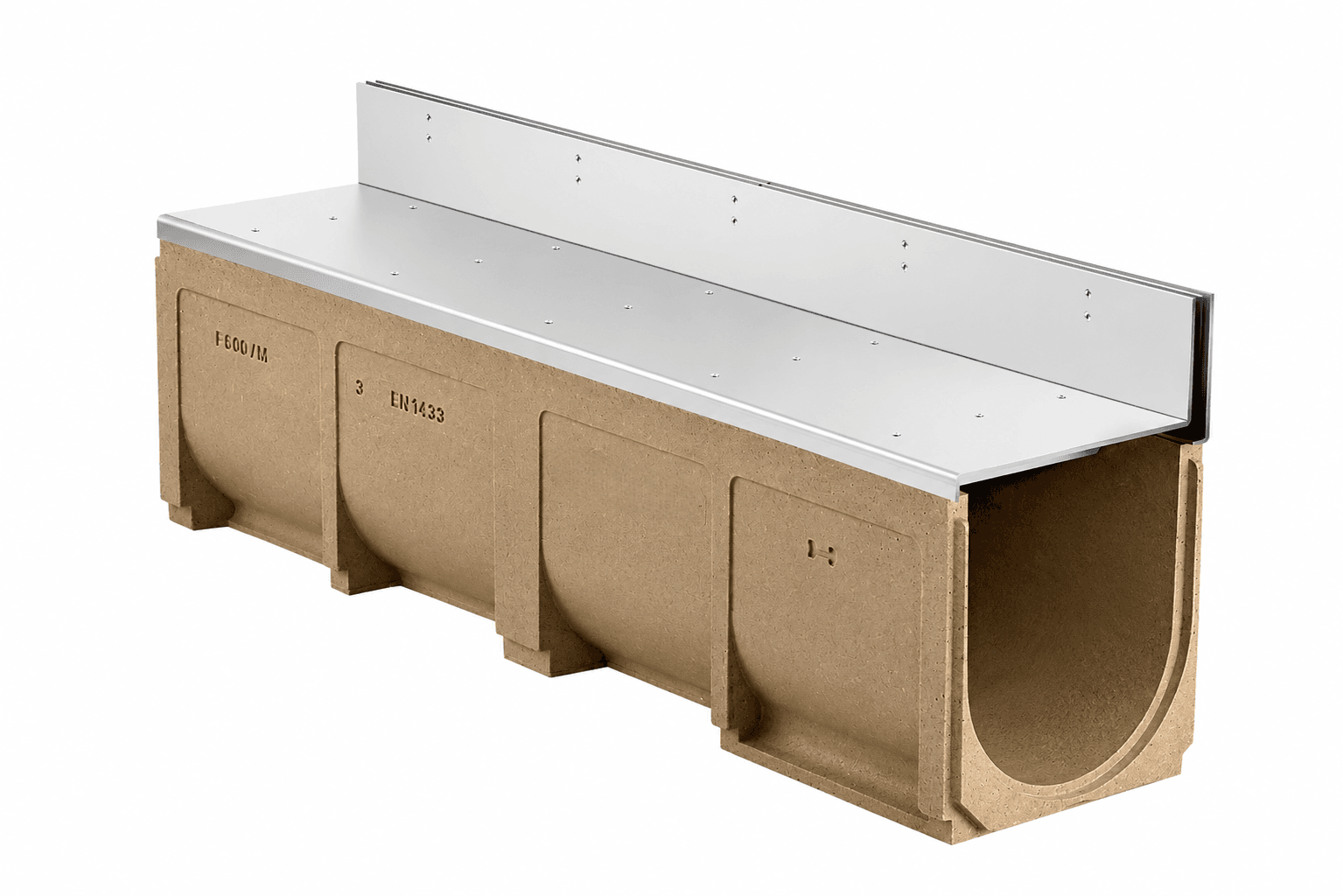

Product Overview
The U200 polymer concrete drainage channel is designed for projects requiring increased drainage capacity. With a 200 mm inner width, the system is suitable for commercial developments, municipal infrastructure and industrial drainage applications.
Manufactured from polymer resin concrete, the channel provides high mechanical strength, low water absorption and long-term resistance to corrosion, chemicals and freeze-thaw conditions.
Technical Details
- Material: Polymer Resin Concrete
- Inner Width: 200 mm
- Standard: EN1433
- Load Class: A15 – F900
- Channel Length: 1000 mm
- Grating Options: Galvanized Steel, Stainless Steel, Ductile Iron
Technical Specifications
| Item No. | Inner Width (mm) | Total Width (mm) | Length (mm) | Inner Height (mm) | Total Height (mm) | Matched Cover Plate Size (mm) |
|---|---|---|---|---|---|---|
| U200-15220GS | 200 | 230 | 1000 | 200 | 220 | 500 × 223 |
| U200-15270GS | 200 | 230 | 1000 | 250 | 270 | 500 × 223 |
| U200-15320GS | 200 | 230 | 1000 | 300 | 320 | 500 × 223 |
| U200-15370GS | 200 | 230 | 1000 | 350 | 370 | 500 × 223 |
| U200-20220GS | 200 | 240 | 1000 | 200 | 220 | 500 × 223 |
| U200-20270GS | 200 | 240 | 1000 | 250 | 270 | 500 × 223 |
| U200-20320GS | 200 | 240 | 1000 | 300 | 320 | 500 × 223 |
| U200-20370GS | 200 | 240 | 1000 | 350 | 370 | 500 × 223 |
Key Features
- Increased Drainage Capacity – The 200 mm inner width provides greater water flow compared with smaller channel systems.
- High Compressive Strength – Suitable for applications ranging from pedestrian areas to heavy-duty traffic zones.
- Low Water Absorption – Helps maintain structural stability in wet environments.
- Chemical Resistant – Suitable for installations exposed to oils, salts and commonly encountered chemicals.
- Frost Resistant – Designed for long-term outdoor use in varying weather conditions.
Available Load Classes
- A15 – Pedestrian Areas
- B125 – Sidewalks and Car Parks
- C250 – Kerbside Areas
- D400 – Roads and Traffic Areas
- E600 – Industrial and Port Facilities
- F900 – Airports and Special Heavy-Duty Areas
FAQ
What is polymer concrete?
Polymer concrete is a composite material made from resin and mineral aggregates. It offers higher strength and lower water absorption than traditional concrete.
What load classes are available?
Our polymer concrete drainage channels are available in load classes from A15 to F900 in accordance with EN1433.
What grating materials are available?
Galvanized steel, stainless steel and ductile iron gratings are available.
Can polymer concrete drainage channels be used in vehicle traffic areas?
Yes. Depending on the selected load class, the system can be used in pedestrian areas, parking lots, roads and heavy-duty traffic zones.
What channel widths are available?
Greentech polymer concrete drainage channels are available in U100, U150, U200, U250, U300, U400 and U500 series.

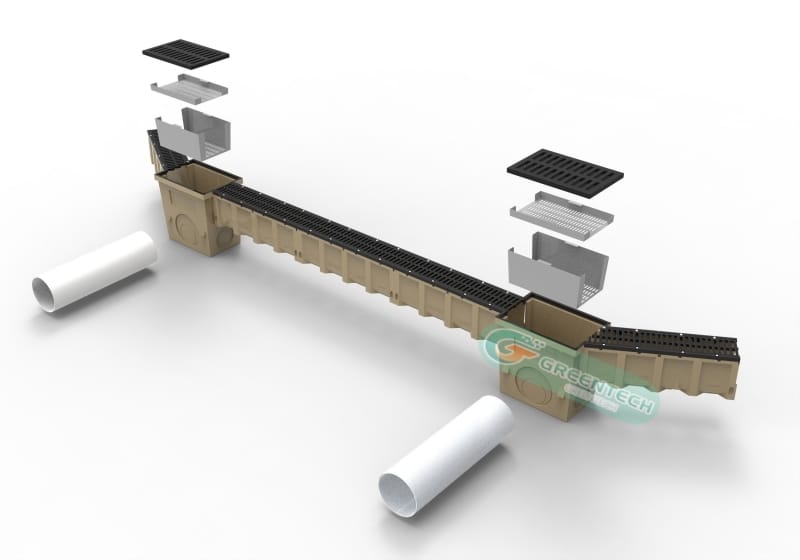

Are end caps and catch basins available?
Yes. Matching end caps and catch basins are available for the drainage system.
Why choose polymer concrete instead of traditional concrete?
Polymer concrete offers higher strength, lower water absorption and better resistance to chemicals and frost.
