Product Overview
The U300 BMC drainage channel is a high-capacity surface water drainage system designed for continuous water collection in commercial and municipal projects where larger drainage capacity is required. With a 300 mm inner width, it efficiently captures and conveys runoff from wide paved areas, improving drainage performance in demanding environments.
Manufactured from fiberglass reinforced BMC composite, this channel combines high mechanical strength with lightweight construction, excellent corrosion resistance and electrical insulation. The non-metallic construction ensures reliable long-term performance without rust or degradation, even in challenging outdoor conditions.
Key Features
Continuous Surface Water Collection
The 300 mm inner width is designed to efficiently collect and convey runoff from larger paved surfaces, making it suitable for municipal roads, commercial developments and industrial applications where reliable drainage performance is critical.
Fiberglass Reinforced Composite
Engineered with fiberglass reinforced BMC material, the channel delivers excellent mechanical strength and impact resistance while maintaining a lightweight profile that simplifies installation.
Corrosion Resistant
The non-metallic composite construction offers superior resistance to moisture, road salts, de-icing chemicals and environmental contaminants, maintaining structural integrity in humid and demanding conditions.
Electrical Insulation
The non-metallic material provides reliable electrical insulation, making the channel suitable for a wide range of applications.
Multiple Grating Options

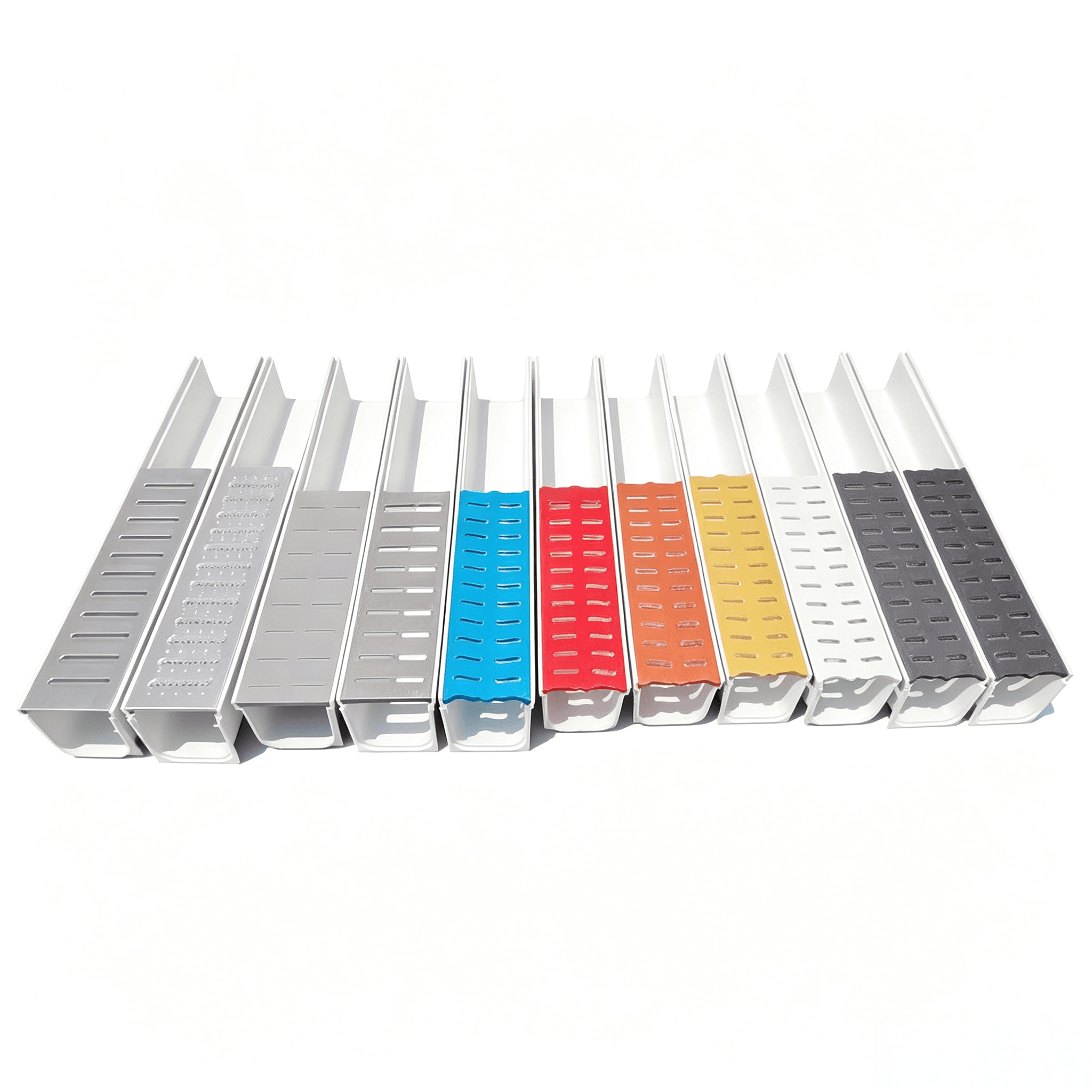

Available with BMC composite, galvanised steel, stainless steel or ductile iron gratings, the system can be configured to meet specific load requirements and project specifications.
Technical Specifications
- Material: BMC (Bulk Molding Compound) – Fiberglass Reinforced
- Inner Width: 300 mm
- Standard: EN1433
- Load Class: A15 – D400 (depending on grating selection)
- Channel Length: 1000 mm per section
- Grating Options: BMC Composite, Galvanised Steel, Stainless Steel, Ductile Iron
Dimensional Specifications
| Model | Weight (kg) | Grating Width (mm) | Overall Width (mm) | Inner Width (mm) | Inner Height (mm) | Overall Height (mm) | L-Shape Height (mm) |
|---|---|---|---|---|---|---|---|
| U300-315-1000 | 23.2 | 342 | 365 | 295 | 280 | 315 | 20 |
| U300-350-1000 | 26.5 | 340 | 378 | 300 | 310 | 350 | 20 |
| U300-380-1000 | 39.5 | 340 | 362 | 300 | 340 | 380 | 20 |
| U300-430-1000 | 41.5 | 340 | 362 | 300 | 390 | 430 | 20 |
| U300-480-1000 | 49.5 | 340 | 362 | 300 | 440 | 480 | 20 |
| U300-530-1000 | 53.4 | 340 | 362 | 300 | 490 | 528 | 20 |
Applications
- Municipal roads and urban streets
- Commercial developments and retail centres
- Public infrastructure and civic projects
- Parking areas and large car parks
- Industrial parks and business estates
- Logistics centres and distribution hubs
- Public facilities and government buildings
Frequently Asked Questions
What is the drainage capacity of the U300 channel?
The U300 provides substantial water collection capacity suitable for large paved areas including municipal roads, industrial parks and commercial developments. The specific hydraulic capacity depends on the channel gradient and outlet configuration.
Is the U300 suitable for industrial applications?
Yes. The U300 is suitable for industrial parks, logistics centres and commercial facilities where large surface areas require efficient drainage. The corrosion-resistant construction makes it particularly suitable for environments where chemical exposure is a consideration.
What grating options are available for the U300?
The U300 is available with BMC composite, galvanised steel, stainless steel and ductile iron gratings. For heavy-duty industrial and municipal applications, ductile iron or stainless steel gratings are typically recommended.
