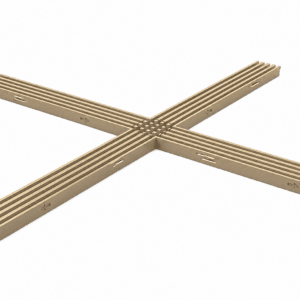

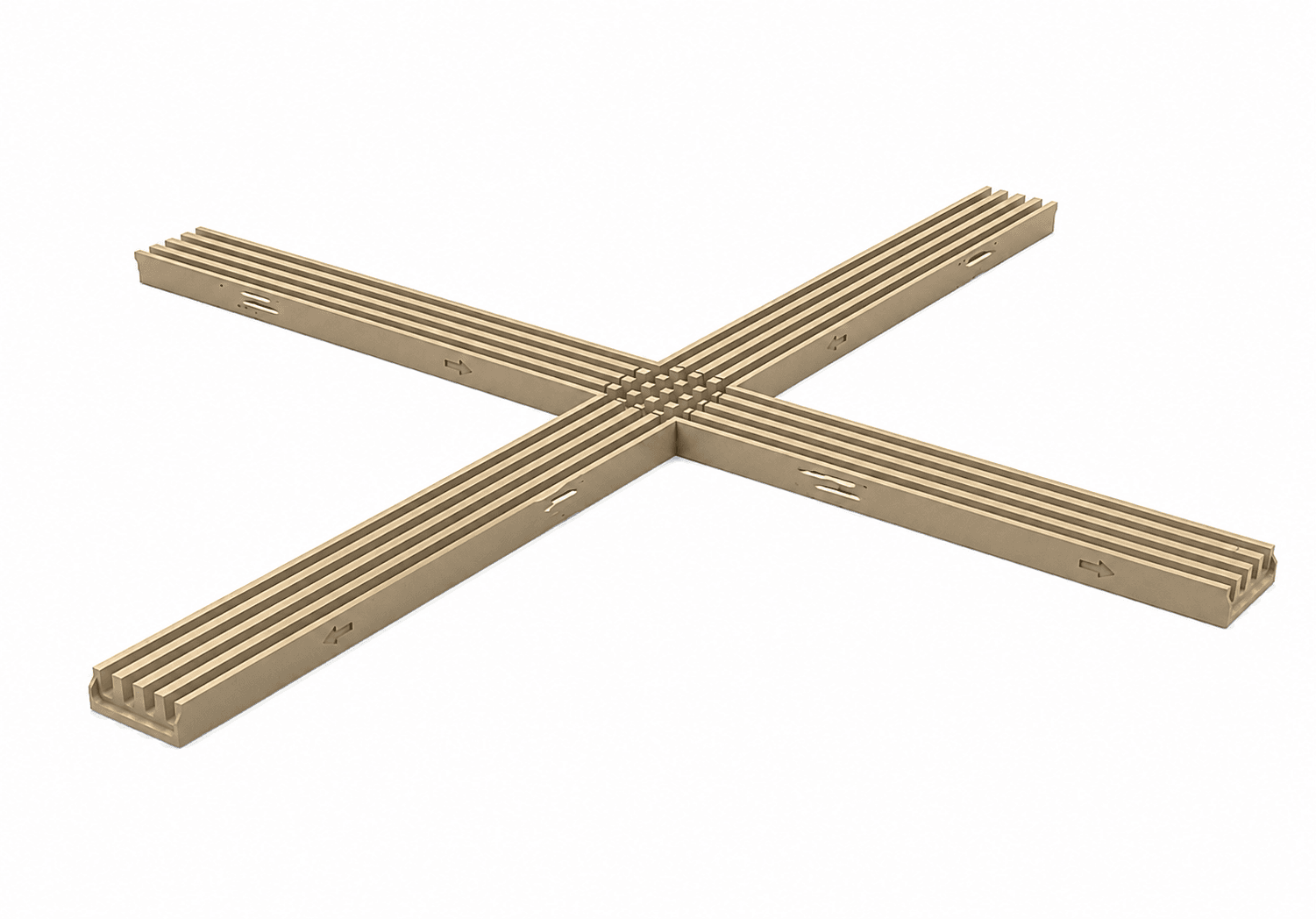

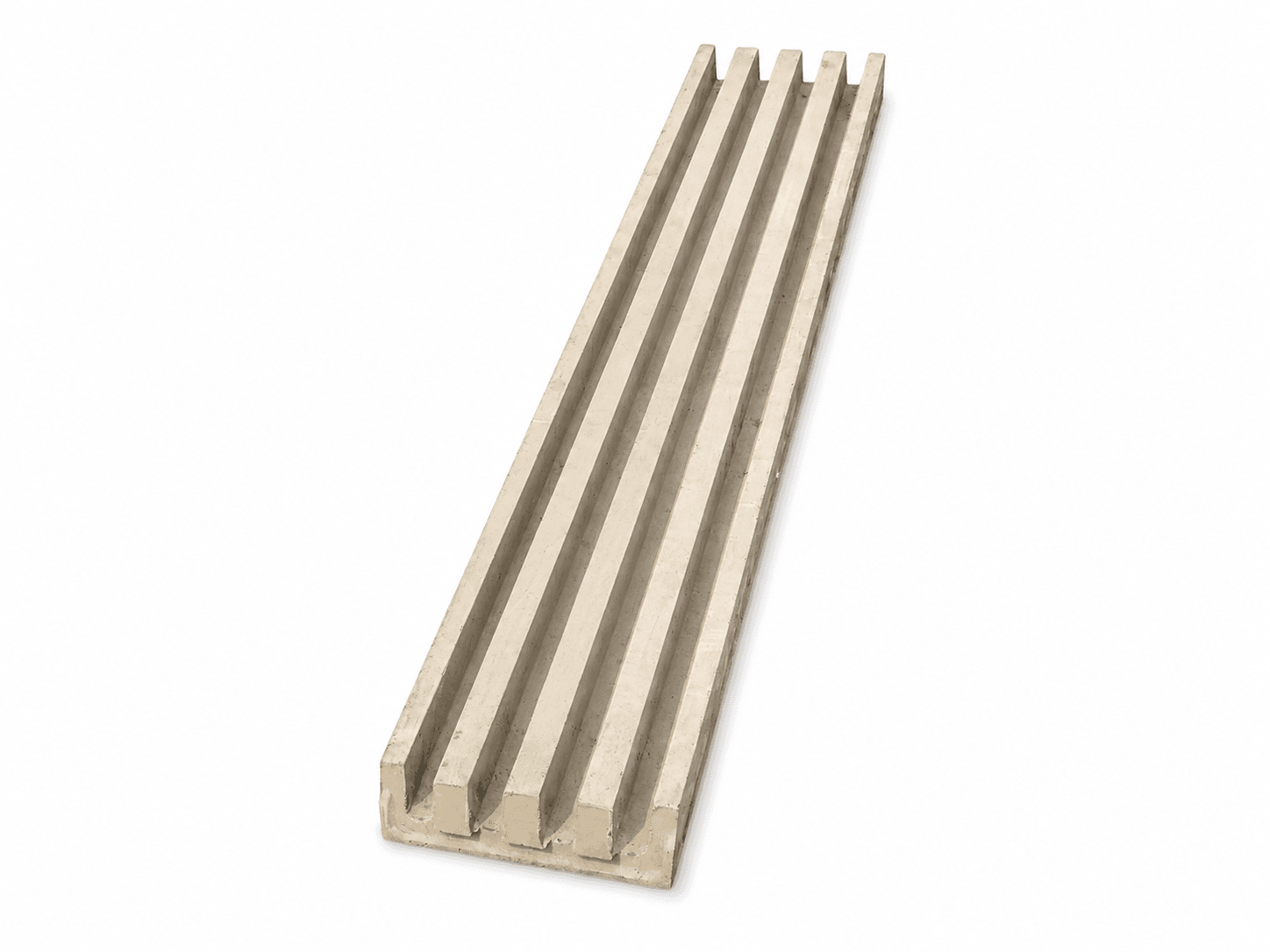

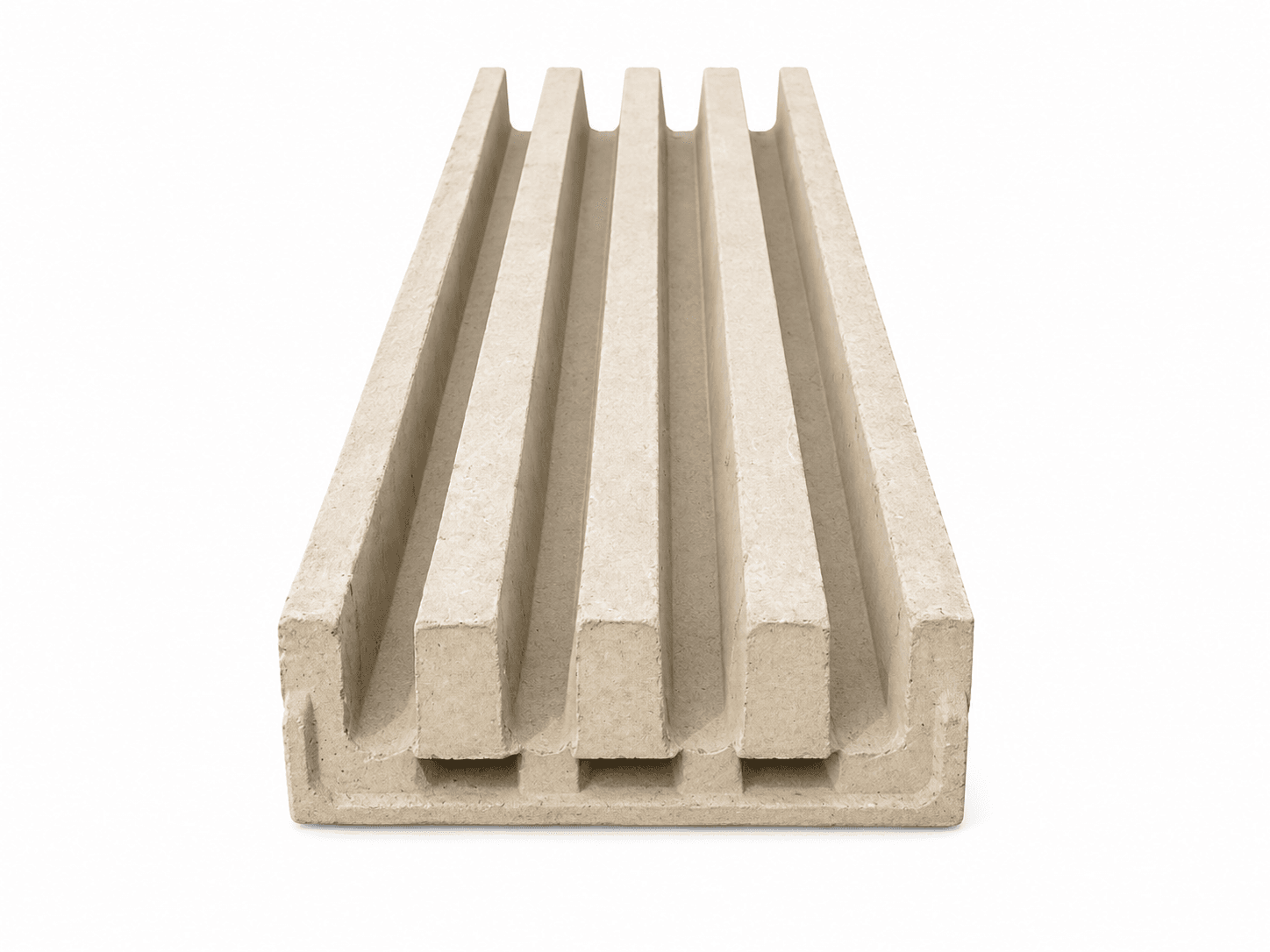

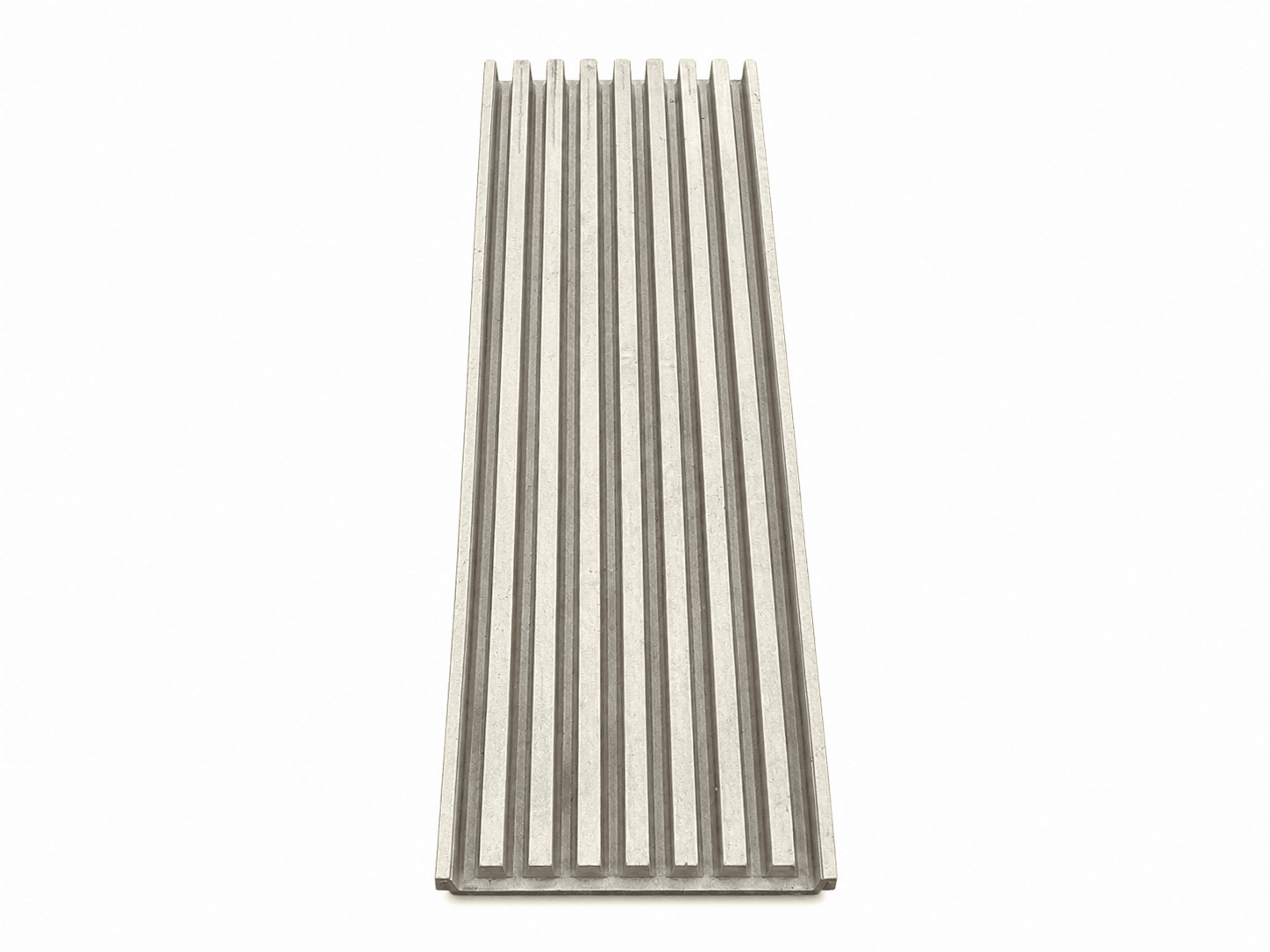

Polymer Concrete Comb Drainage Channel
Polymer concrete comb drainage channel for surface water collection. Integrated one-piece design with comb profile for efficient drainage, clean appearance and simplified installation.
Product Overview
The polymer concrete comb drainage channel is an integrated linear drainage solution designed for efficient surface water collection. Unlike traditional drainage systems with removable gratings, the comb profile is formed as part of the channel body, providing a clean appearance, simplified installation and reduced maintenance.
Manufactured from high-quality polymer concrete, the channel offers excellent mechanical strength, low water absorption and outstanding resistance to weathering and chemical attack. The one-piece construction improves long-term durability while eliminating the need for separate grating installation.
Technical Details
- Material: Polymer Concrete
- Width: 100 – 300 mm
- Standard Length: 1000 mm
- Connection Type: Tongue and Groove
- Structure: One-piece Comb Profile Design
Key Features
- Integrated One-piece Structure – The comb profile is molded together with the channel body, eliminating the need for a separate grating.
- Continuous Surface Water Collection – The open comb profile allows rainwater to enter continuously along the entire length of the channel.
- Tongue and Groove Connection – The tongue and groove design enables fast alignment and secure connection during installation.
- Polymer Concrete Construction – Manufactured from polymer concrete with high strength, low water absorption and excellent resistance to weathering and chemicals.
- Low Maintenance – The integrated structure reduces loose components and simplifies routine cleaning and maintenance.
Applications
- Residential Developments
- Gardens and Landscape Projects
- Driveways
- Building Entrances
- Courtyards
- Parking Areas
- Commercial Developments
- Industrial Facilities
FAQ
What is polymer concrete?
Polymer concrete is a composite material made from resin and mineral aggregates. It offers higher strength and lower water absorption than traditional concrete.
What load classes are available?
Our polymer concrete drainage channels are available in load classes from A15 to F900 in accordance with EN1433.
What grating materials are available?
Galvanized steel, stainless steel and ductile iron gratings are available.
Can polymer concrete drainage channels be used in vehicle traffic areas?
Yes. Depending on the selected load class, the system can be used in pedestrian areas, parking lots, roads and heavy-duty traffic zones.
What channel widths are available?
Greentech polymer concrete drainage channels are available in U100, U150, U200, U250, U300, U400 and U500 series.
Are end caps and catch basins available?
Yes. Matching end caps and catch basins are available for the drainage system.
Why choose polymer concrete instead of traditional concrete?
Polymer concrete offers higher strength, lower water absorption and better resistance to chemicals and frost.
