Product Overview

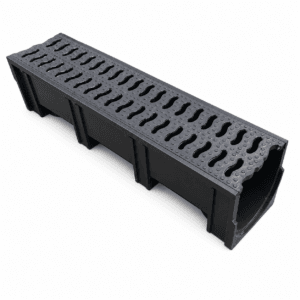

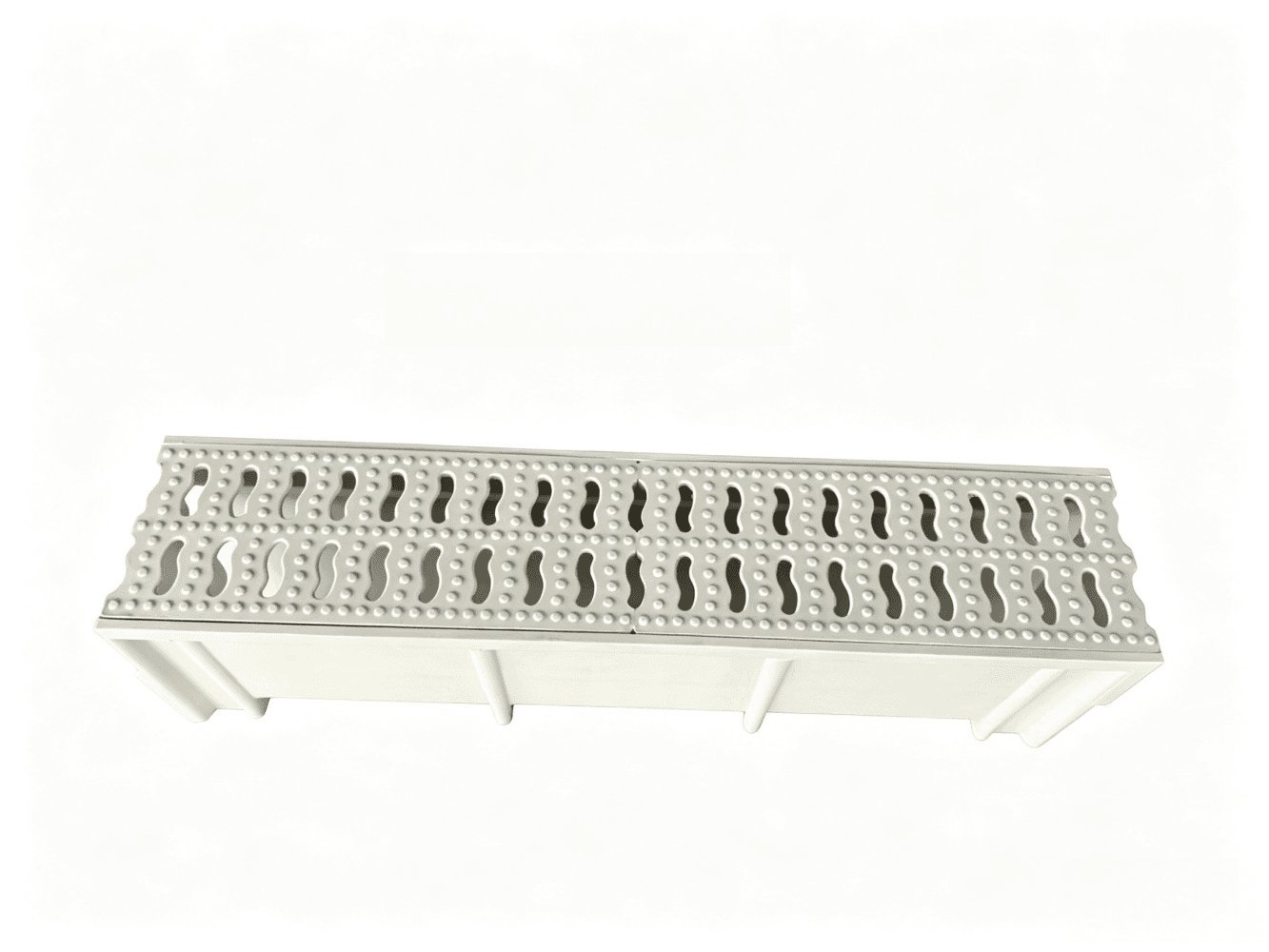

The U200 BMC drainage channel is a high-capacity surface water drainage system designed for commercial developments, public facilities and municipal infrastructure projects. With a 200 mm inner width, it provides efficient water collection for larger paved areas where reliable drainage performance is essential.
Manufactured from fiberglass reinforced BMC composite, this channel combines high mechanical strength with lightweight construction, excellent corrosion resistance and electrical insulation. The non-metallic construction ensures long-term outdoor durability without rust or degradation, even in demanding environmental conditions.
Key Features
Increased Drainage Capacity
The 200 mm inner width provides greater water flow capacity than compact drainage channels, making it suitable for larger paved areas such as commercial plazas, parking facilities and municipal streets where efficient surface water management is critical.
Fiberglass Reinforced Composite
Engineered with fiberglass reinforced BMC material, the channel delivers excellent mechanical strength and impact resistance while maintaining a lightweight profile that simplifies installation.
Corrosion Resistant
The non-metallic composite construction offers superior resistance to moisture, road salts, de-icing chemicals and environmental contaminants. The channel maintains structural integrity in demanding outdoor conditions without rust or corrosion.
Electrical Insulation
The non-metallic material provides reliable electrical insulation, making the channel suitable for a wide range of applications where electrical safety considerations apply.

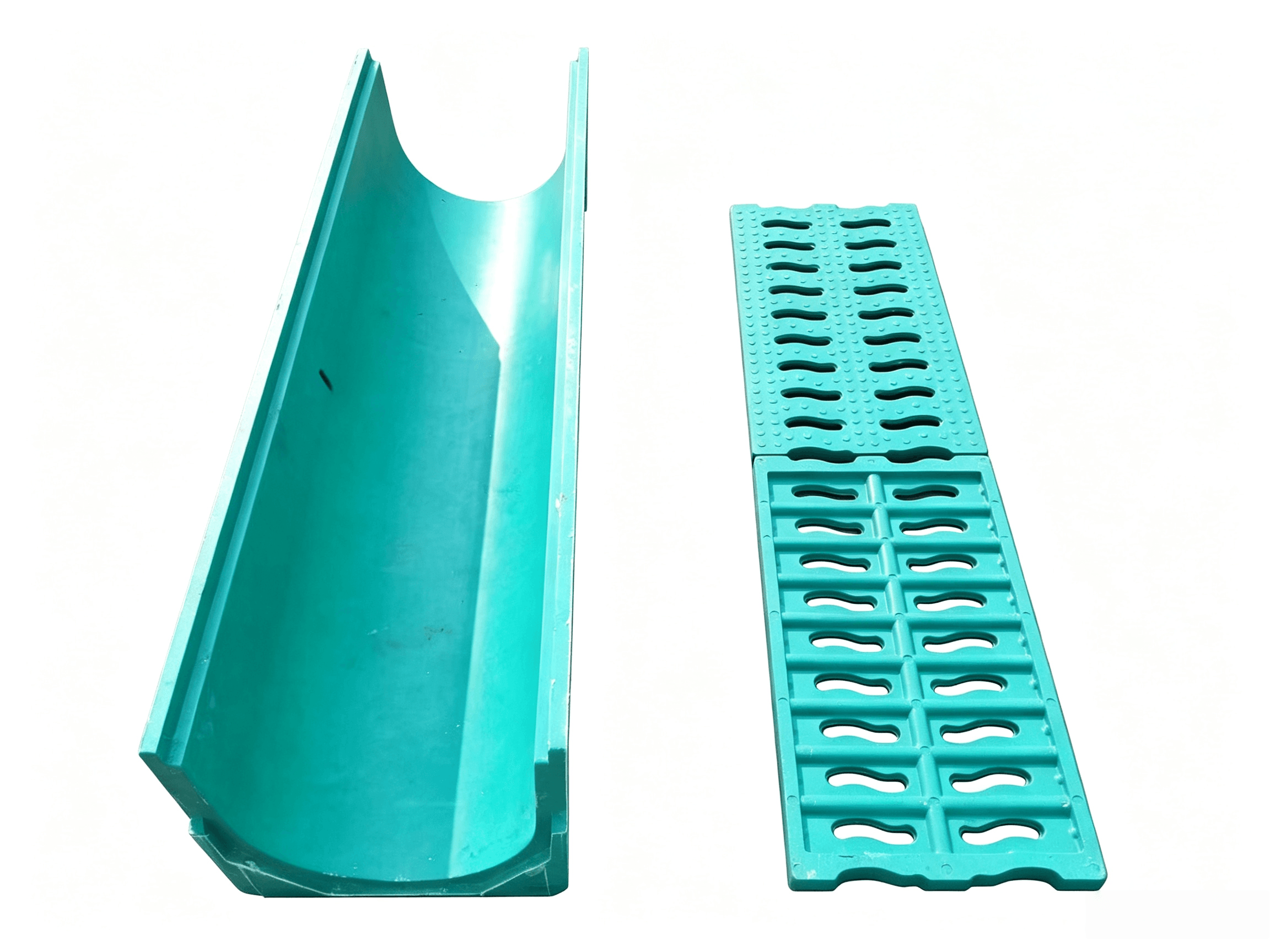

Multiple Grating Options
Available with BMC composite, galvanised steel, stainless steel or ductile iron gratings, the system can be configured to meet specific load requirements and project specifications.
Technical Specifications
- Material: BMC (Bulk Molding Compound) – Fiberglass Reinforced
- Inner Width: 200 mm
- Standard: EN1433
- Load Class: A15 – D400 (depending on grating selection)
- Channel Length: 1000 mm per section
- Grating Options: BMC Composite, Galvanised Steel, Stainless Steel, Ductile Iron
Dimensional Specifications
| Model | Weight (kg) | Grating Width (mm) | Overall Width (mm) | Inner Width (mm) | Inner Height (mm) | Overall Height (mm) | L-Shape Height (mm) |
|---|---|---|---|---|---|---|---|
| U200-80-1000 | 8.3 | 223 | 245 | 197 | 45 | 80 | 20 |
| U200-190-1000 | 10.7 | 222 | 242 | 195 | 150 | 190 | 20 |
| U200-250-1000 | 12.2 | 220 | 255 | 200 | 210 | 250 | 20 |
| U200-300-1000 | 15.9 | 223 | 258 | 205 | 260 | 300 | 20 |
| U200-350-1000 | 25.5 | 223 | 247 | 195 | 310 | 350 | 20 |
| U200-400-1000 | 28.5 | 223 | 245 | 195 | 360 | 400 | 20 |
Applications
- Commercial developments and retail centres
- Municipal infrastructure and public works
- Public squares and civic spaces
- Parking areas and multi-storey car parks
- Sports facilities and stadiums
- Transport terminals and bus stations
- Public walkways and pedestrian zones
Frequently Asked Questions
What is the maximum load rating for the U200 drainage channel?
The U200 system is available with load class ratings up to D400, making it suitable for vehicle access areas, carriageways and heavy-duty applications when fitted with appropriate gratings such as ductile iron or stainless steel options.
How does the U200 compare with concrete drainage channels?
The U200 BMC channel is significantly lighter than concrete alternatives, making it easier to transport, handle and install. It also offers superior corrosion resistance and does not absorb water, eliminating the freeze-thaw damage risks associated with concrete channels.
Is the U200 suitable for high-traffic commercial areas?
Yes. The fiberglass reinforced BMC construction provides excellent impact resistance and durability, making the U200 suitable for high-traffic commercial environments including retail plazas, transport terminals and public facilities.
